Easy Installation

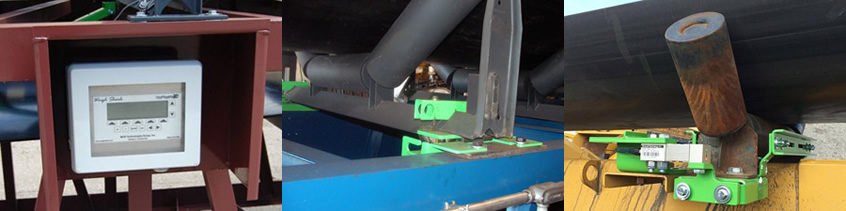

• Mounts to any width CEMA idler.
• No holes to drill.
• Installation in just a few minutes to customers idler.

Simple Calibration

• Calibration accomplished via instructions that appear on Large Graphical Display (5.25” x 1.5”).
• Simple Step–by–Step instructions through the calibration process.
• Speed Sensor mounts to any adjacent idler via special “tri-fold” bolt.
• Large oversize NEMA 4x fiberglass enclosure with lockable latch.

Accurate and Reliable

• Solid steel construction with durable powder coating for protection.
• Heavy Duty Steel Load Cells temperature compensated for accuracy during wide temperature ranges.
• High speed processor and surface mount circuitry components for long reliable operation.

Standard Features

• 4 Inputs: Remote Clear, Print Ticket, etc.
• 4 Outputs: Under / Over Speed, Rate or Tons, Pulse per Ton, etc.
• 4-20 mA Output (16 bit): Chart Recorder, Production Control, etc.
• Accepts 110/220 VAC and 12-24 VDC
• Power Protection both Under and Over (85 to 264 VAC)
• RS 232: Printer, etc.
• RS 485: Printer, Auxiliary Equipment, etc.
• Ethernet: PLC, PC, Remote Display, HTTP Web Server
• 2 Year Limited Warranty

Models:

• Model 150 (Typically 50 to 250 TPH)*
• Model 250 (Typically 250 to 750 TPH)*
• Model 500 (Typically above 750 TPH)*
• Model HD (Designed for CEMA E and F Idlers)*
• Model CIT (Designed for Channel Insert Idlers)*

*Based on Belt Speed and Belt Width
