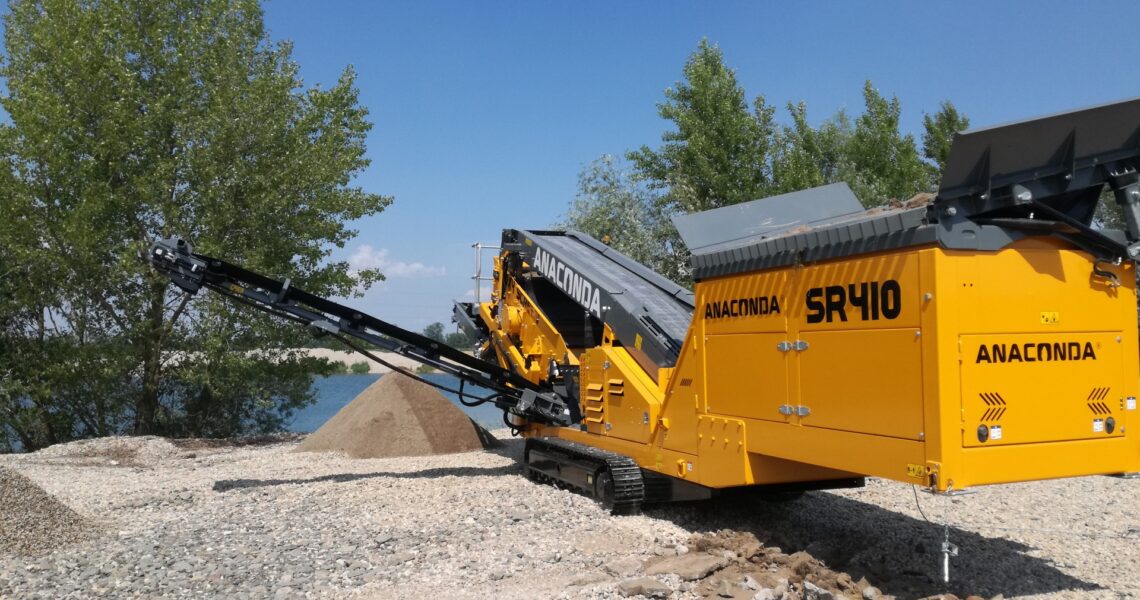

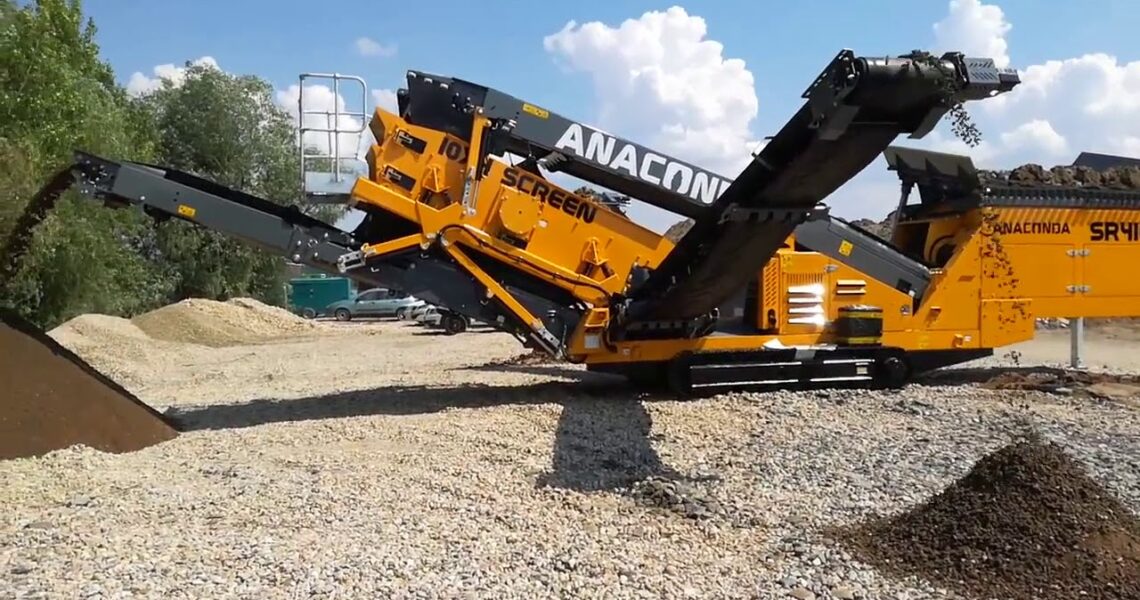

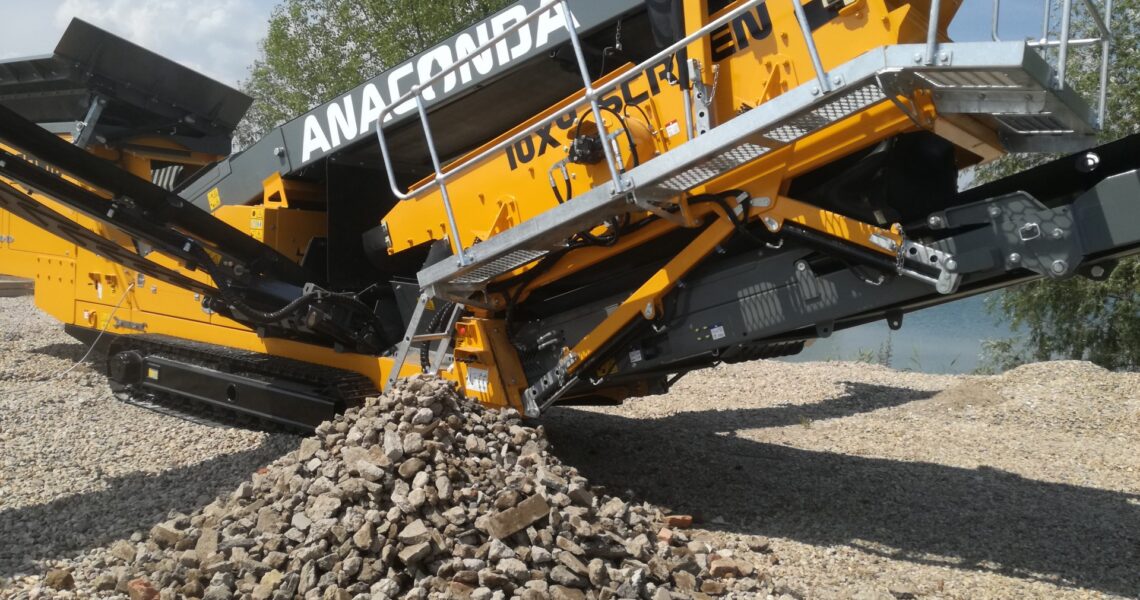

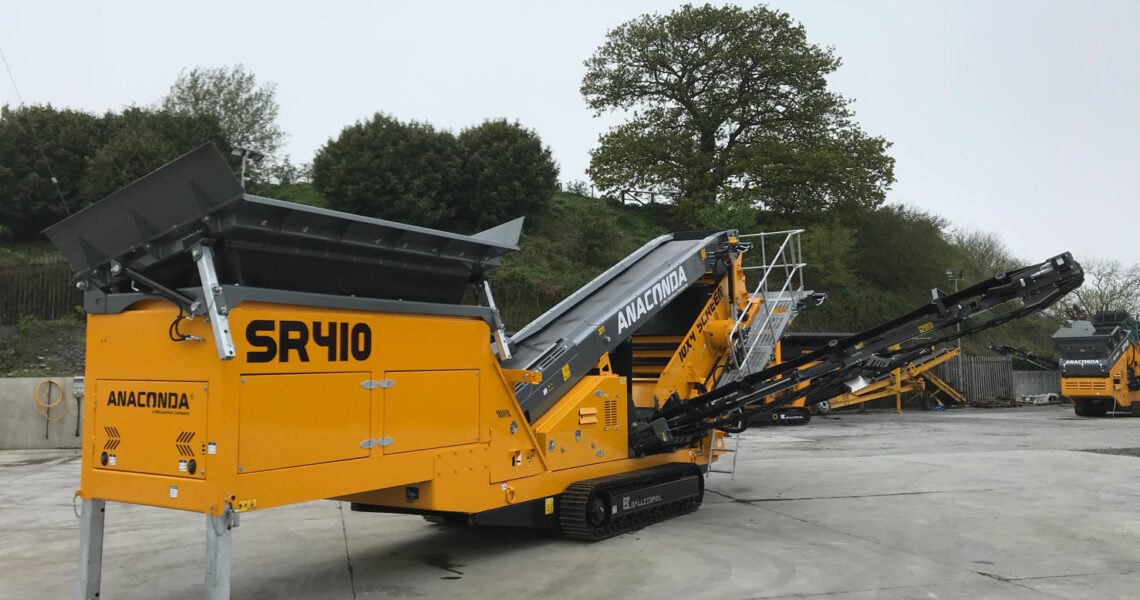

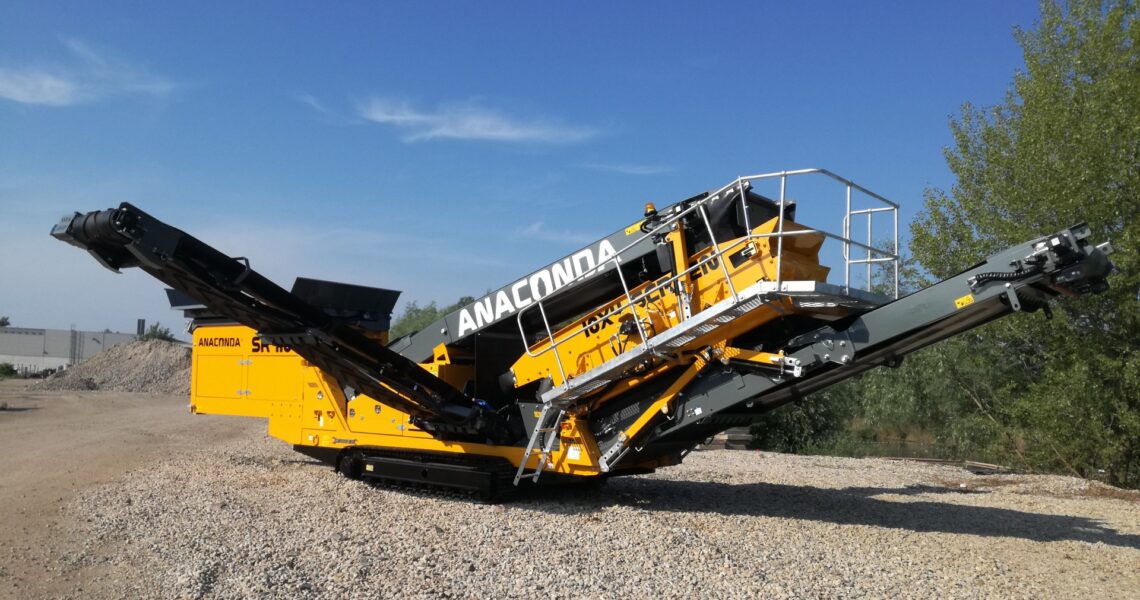

Anaconda SR410 Finishing Screen
Overview
The SR410 is compact and economical to run and can screen / stockpile 3 products at up to 200TPH. Complete with a 10 x 4 2 deck screen box, a 14ft feed hopper, main conveyor and 3 hydraulically folding stockpiling conveyors. The screen extremely easy to track around sites and can be commissioned within 20 minutes of arrival on site.
The SR410 is the small-sized screen in Anaconda’s finishing screen range and is established in the earth moving and material handling markets. This compact screener is designed to offer customer and entry level screen that will produce high tonnages at the right price. Primary applications include sand, gravel, coal and aggregates which makes it useful that this screen can be loaded directly with a shovel/excavator or directly from the belt of a crusher.
This versatile mobile screener’s footprint makes it a dream for sites that will require ease of movement in tight spaces. The SR410 takes into account all aspects of screening with a tipping grid to scalp away the bulky overs, the screen box for separation of up to three different sizes of end product and also built in conveyors that allow for constant stockpiling of product as the screen is fed.
Features & Benefits:
- TIER 4F – JCB444 EcoMax IPU
- STAGE 5 – CAT
- High energy 3m x 1.2m (10’ x 4’) 2 deck screenbox
- Max hopper capacity of 5.8mᵌ (7.5yd ᵌ)
- Screenbox angle adjustable 28° to 36°
- Fully adjustable spreader plate for optimum screening
- End tensioned mesh arrangement
- Screenbox and tail conveyor lowers to allow mesh change
- Variable Speed 3 ply belt feeder
- Variable speed on main and side conveyors
- Radio remote tipping grid
- Machine weight : 15,500 KG
Options:
- Screen decks: mesh, piano wire
- Tipping grid removed
- Hopper Extensions
- Radio remote control
- Dust covers
- Anti-roll back
