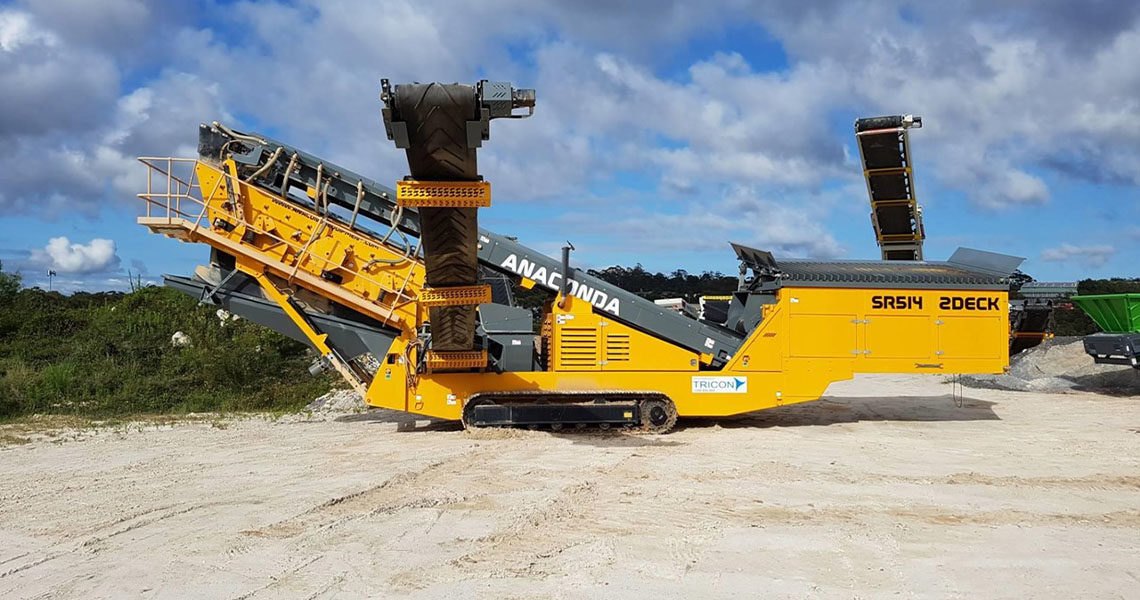

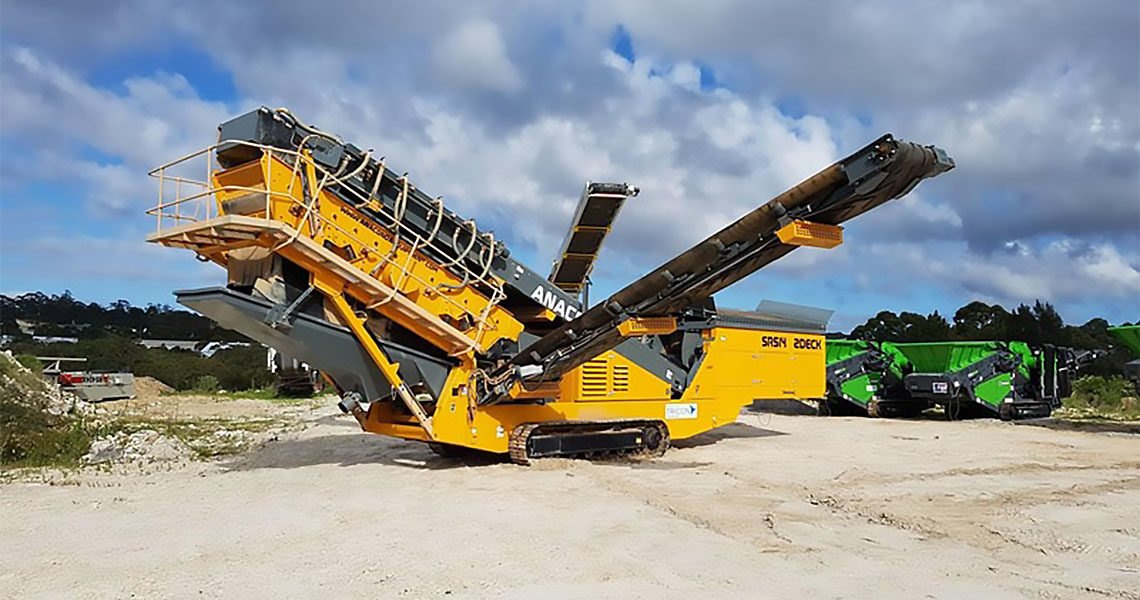

Anaconda SR514 Rinsing Screen
Overview
The SR514 Rinsing Screener has been designed for applications that require the first stage of primary washing; it is a powerful and adaptable mobile washing solution that can process a capacity of up to 350TPH. The SR514 Rinsing Screen comes complete with a 14′ x 5′ screen box with the option of 2 or 3 deck, a 14ft feed hopper, main conveyor and either 2 or 3 hydraulically folding stockpiling side conveyors.
The SR514 Rinser is equipped with polymer fan nozzles and a rinser catch box to hold the users end product. This gives the screener the ability to introduce primary washing to a users operation. This versatile mobile screener is extremely easy to commission and can be tracked around sites for ease of use. The beauty about the SR514 Rinser is it takes into account all aspects of screening with a tipping grid to scalp away the bulky overs, the high energy rinsing screen box for separation of up to four different sizes of end product and also built in conveyors that allow for stockpiling and feeding the machine from the hopper.
This versatile mobile screener is extremely easy to commission and can be tracked around sites for ease of use. The beauty about the SR514 Rinser is it takes into account all aspects of screening with a tipping grid to scalp away the bulky overs, the high energy rinsing screen box for separation of up to four different sizes of end product and also built in conveyors that allow for stockpiling and feeding the machine from the hopper.
Features & Benefits:
- TIER 4F – JCB444 EcoMax IPU (93kW)
- STAGE 5 – CAT 3.6 (100kW)
- High energy 4.33m x 1.52m (14’ x 5’) 2 or 3 deck rinsing screen
- 3 piece side tensioned top and second deck / 2 piece end tensioned bottom deck
- Max hopper capacity of 8mᵌ (10.4yd ᵌ)
- Screenbox angle adjustable 22° to 34°
- Hydraulic screenbox and conveyors
- Variable speed 4 ply belt feeder
- Variable speed main and side conveyors
- Radio remote tipping grid

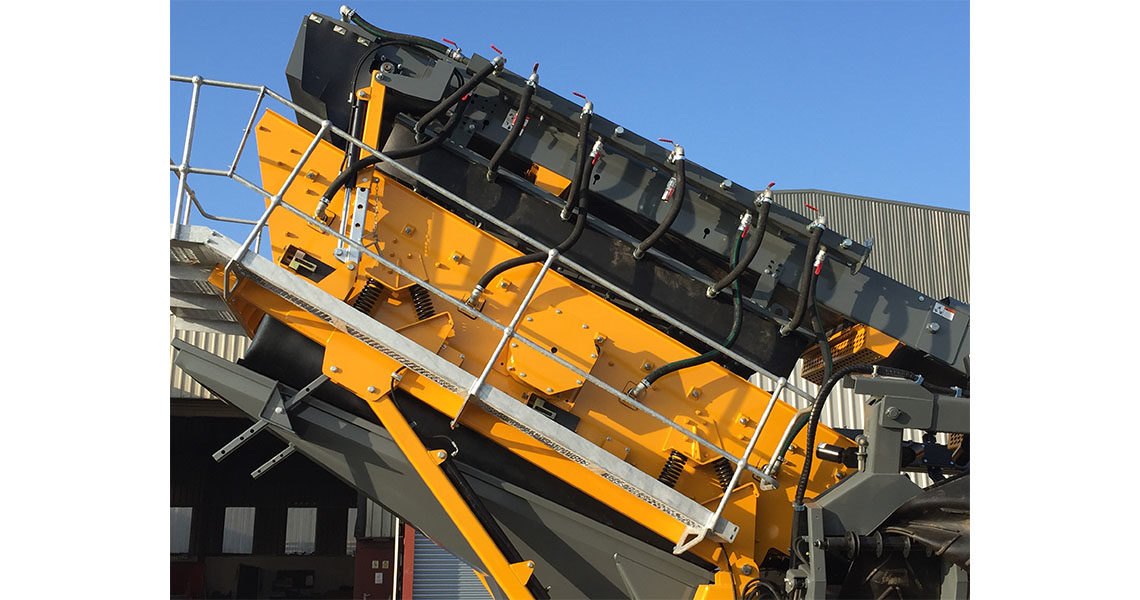

- Polymer fan nozzles on spray bar
- Rinser catch box
- Screen-box walkways for maintenance and mesh change
- Reversible transfer belt (3 Deck Screen)
- Variable speed on all stockpile belts
- Machine weight : 2 Deck 26,500KG (w/ Livehead 31,000KG)
- Machine weight : 3 Deck 28,500KG (w/ Livehead 33,000KG)
Rinsing Features
- 2 Deck – 33 Polymer Fan/41 Brass Nozzles
- 3 Deck – 33 Polymer Fan/83 Brass Nozzles
- 2 Deck – 1805 LPM (Application Specific)
- 3 Deck – 3485 LPM (Application Specific)
- Rinser Catchbox 10mm 60 shore bonded rubber lining
- Rinser Catchbox 10’’ Twin Outlet Flanges
Options:
- Screen Decks – Mesh, Piano Wire
- 2 or 3 Deck Rinsing Screen
- 2 Deck Vibrating Grid
- Radio Remote Control
- Dust Covers
- Working Lights
- Coupling Facility to Run with a Screw Washer
