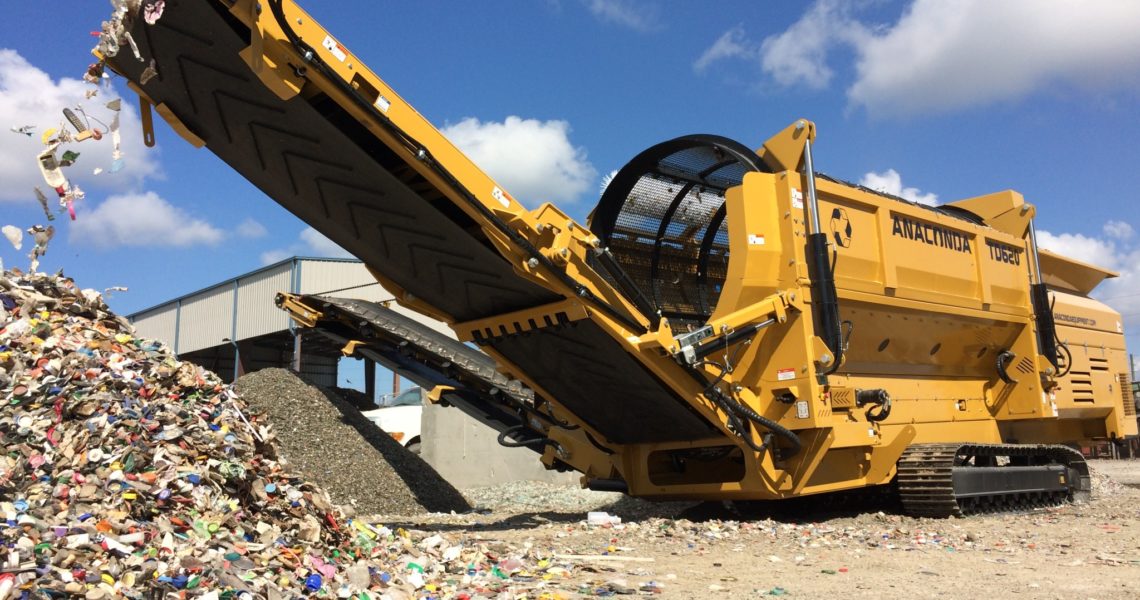

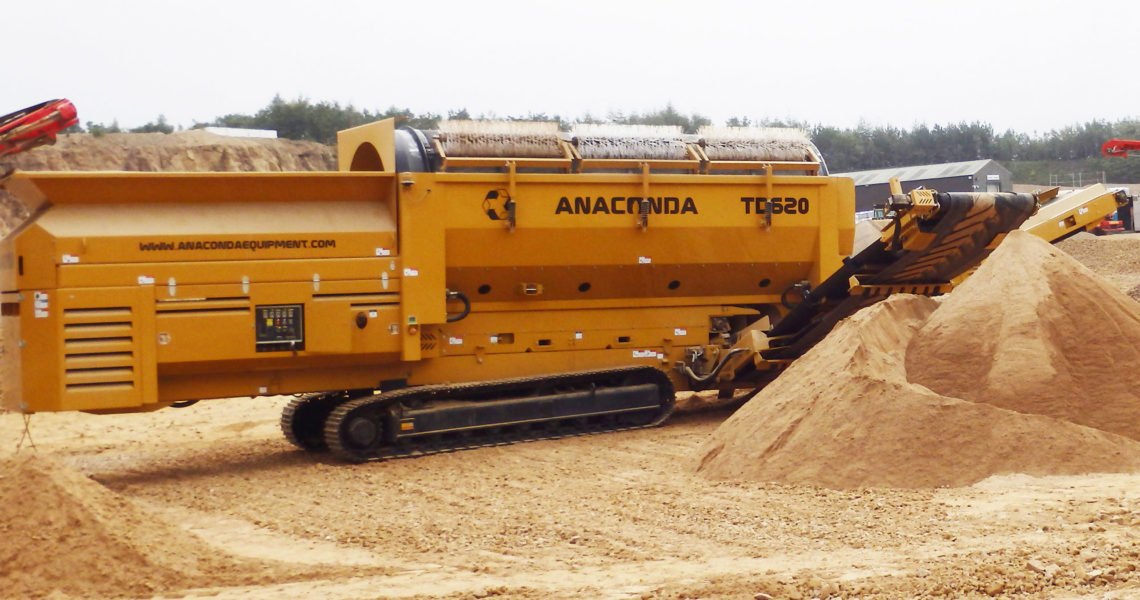

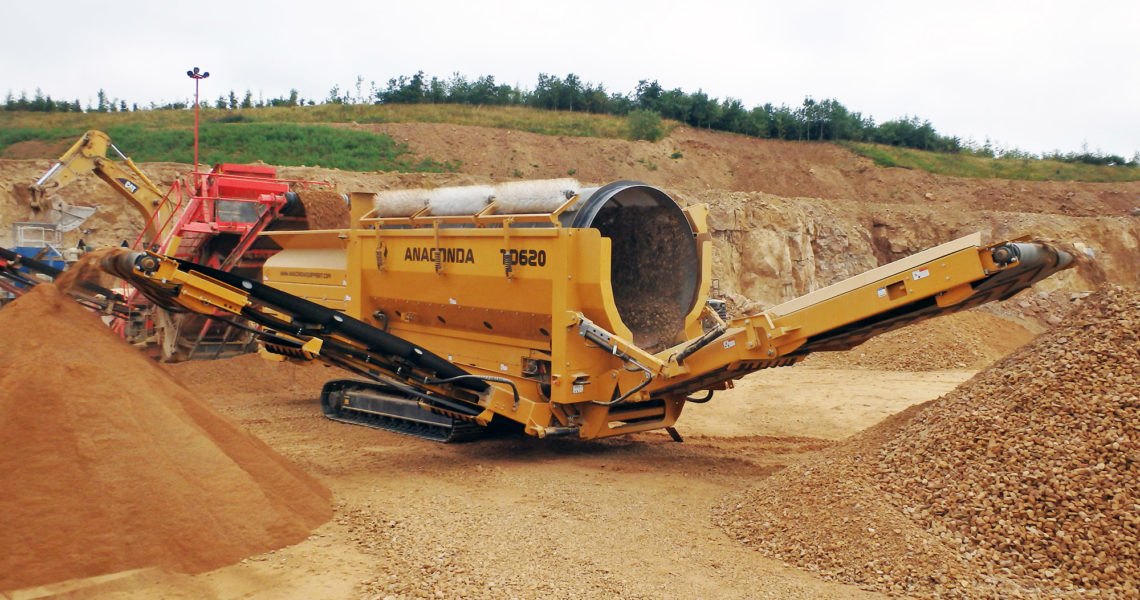

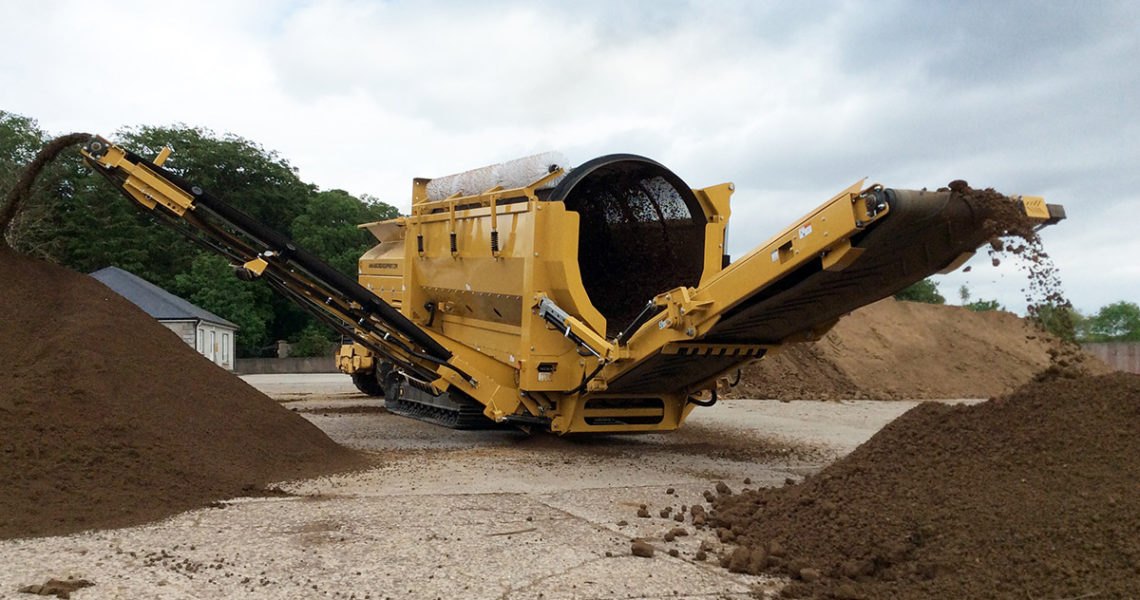

Anaconda TD620 Trommel Screen

Overview

TD620 Trommel Screen

Features & Benefits:

  • (Stage 3A) JCB DieselMax  – Tier 3  – 85kW Engine – (115HP) – (ROW)
  • (Stage 3B) JCB Ecomax 93kW – Tier 4i   – (125HP) – (EU)
  • Screening Drum 5.41m long x 2.0m diameter
  • Forward and reverse 4 wheel drive drum system
  • Variable speed on screening drum and all conveyors
  • Quick drum change [hydraulic drum lift out]
  • Adjustable drum screening angle 0° to 6°
  • Drum Load Sensing System
  • Set up time 20 minutes
  • Machine Weight: 44, 000 LBS /  20, 000 KG

Options:

  • Remote tipping grid
  • Hopper Extensions
  • Flexible drum configurations : Solid plate / woven wire mesh
  • Wheel chassis
