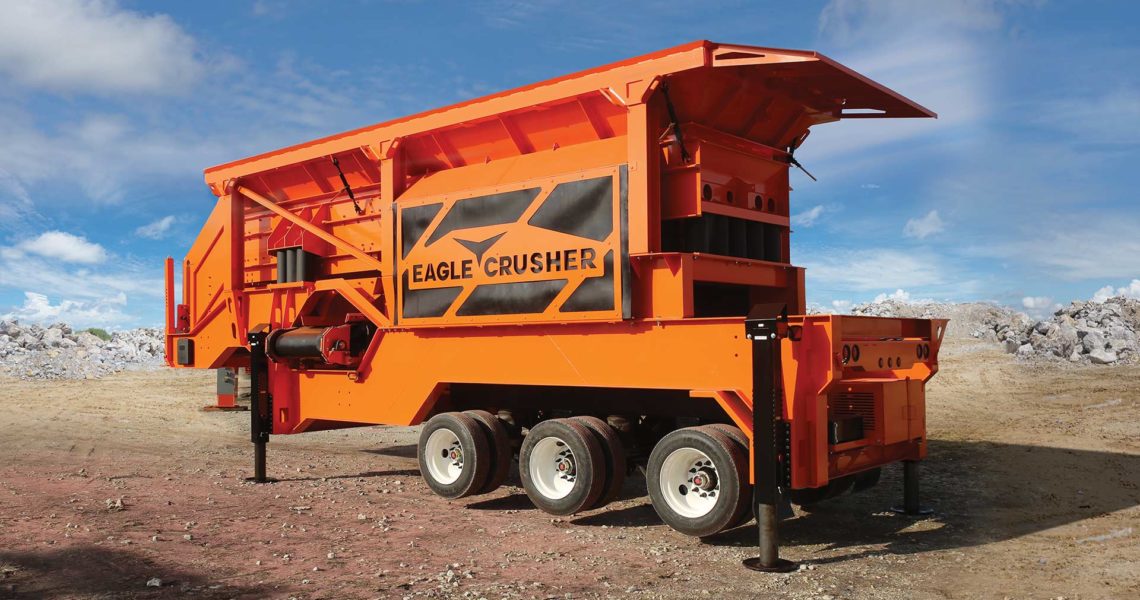

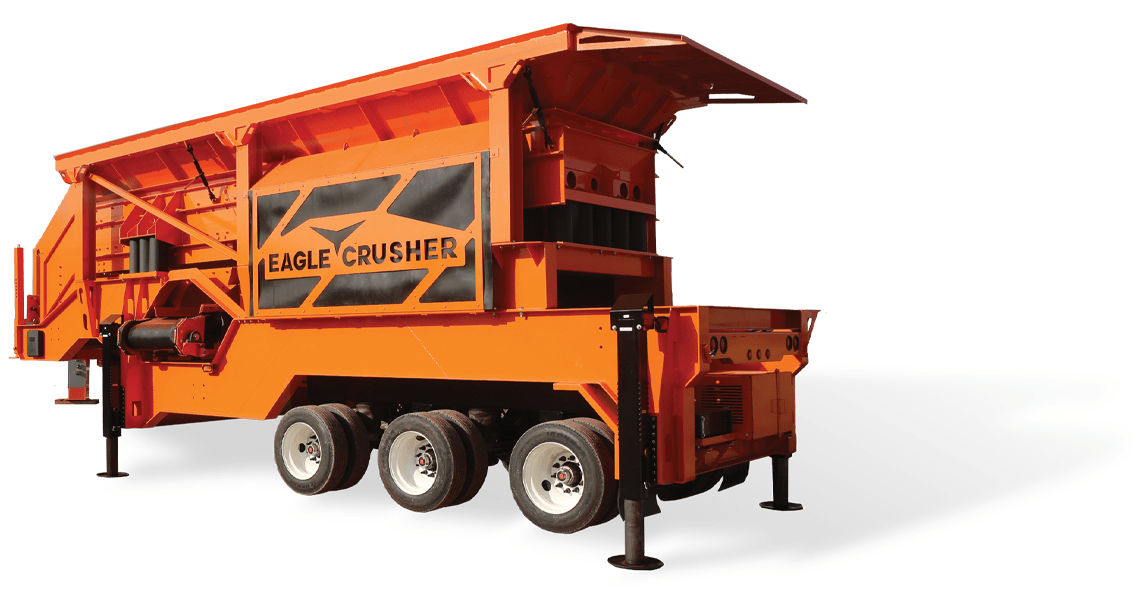

Eagle Crusher RIPRAP® Scalping Plant

Overview

The RIPRAP® plant was specially designed to provide aggregate producers with the widest, heavy-duty feeder in the industry for the ultimate portable plant in high production screening and scalping.

Brochure

Features and Benefits

  • Easily transports in one pull. Check with your DOT.
  • Features the widest, heavy-duty feeder in the industry, measuring 67” x 24’ to meet your highest volume production needs.
  • Versatile, 42” reversible cross conveyor allows feeding into the stacking conveyor from either side of the plant and features 5’ impact bed and idlers.
  • Available in Tier 4 diesel and electric-power options.
  • Enables quick set up and tear down with the available hydraulic lift and leveling system using the hydraulic run-on legs.
  • Features two-step, five-foot, adjustable grizzly decks.
  • Fully equipped with main control panel to distribute power to all on-plant motors as well as controls and plugs for two additional stacking conveyors.
  • Features main breaker for easy connection to your line power or stand-alone generator, or select our optional self contained plant-mounted Tier 4 diesel-power units.
  • Easily removable control panels for operation, service, and maintenance ease.
  • Available hydraulic grizzly dump-over hopper for removing oversized material.
  • Grizzly chutes feature AR400 liners.
  • Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
  • Use the wireless remote control for the feeder shutdown and all motor stop.
  • Available heavy duty stacking conveyors.

Key Specifications

  • Feeder Size:  1700 mm x 7.3 m / 67” x 24’
  • Grizzly Deck Size (Both Decks): 1700 mm x 1524 mm / 67” Wide x 60” Long
  • Reversible Cross Conveyor: 1067 mm / 42” Wide
  • Feeder Motor Size: 37 kW / 50 Hp
  • Cross Conveyor Motor Size: 7.5 kW / 10 Hp
  • Approximate Weight (Electric): 33,112 kg / 73,000 lbs
  • Approximate Weight (Diesel): 35,652kg / 78,600 lbs
  • Travel Width: 3.6 m / 11’ 10”
  • Travel Height:  4.1 m / 13’ 6”
  • Travel Length: 10.9 m / 35’ 8”
  • Feed Hopper Capacity: 20.6 m3 / 27 yd3
  • Main Control-Panel Power Supply: NEMA/UL Type 4 Enclosure With 250A/120kW Main Breaker
  • Available Diesel On-Plant Power Supply: 177 kW / 237 Hp diesel engine with 155 kW generator
