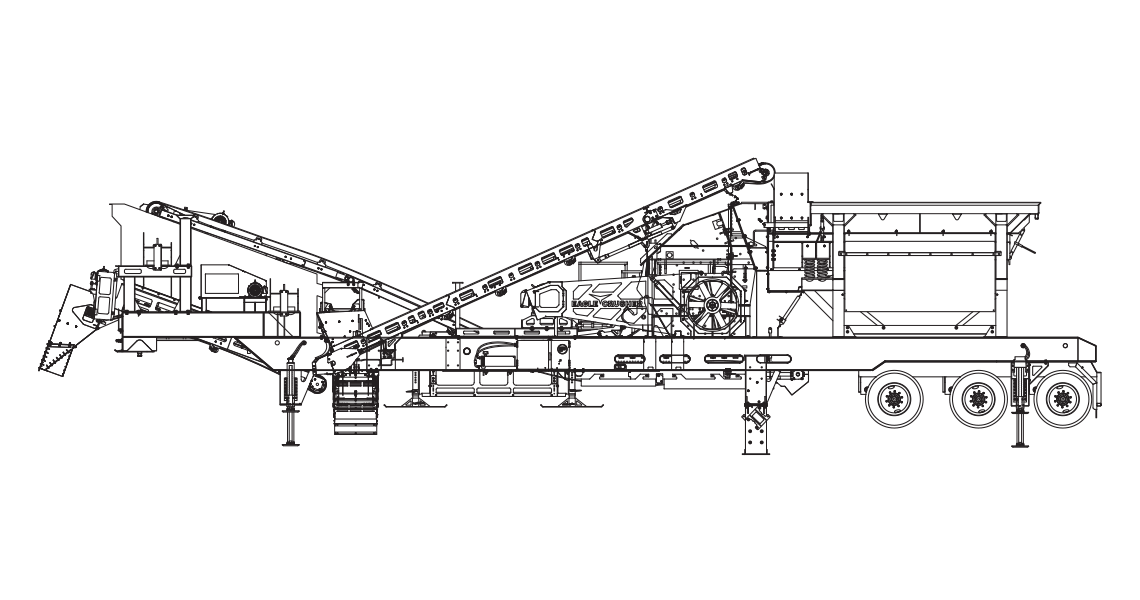

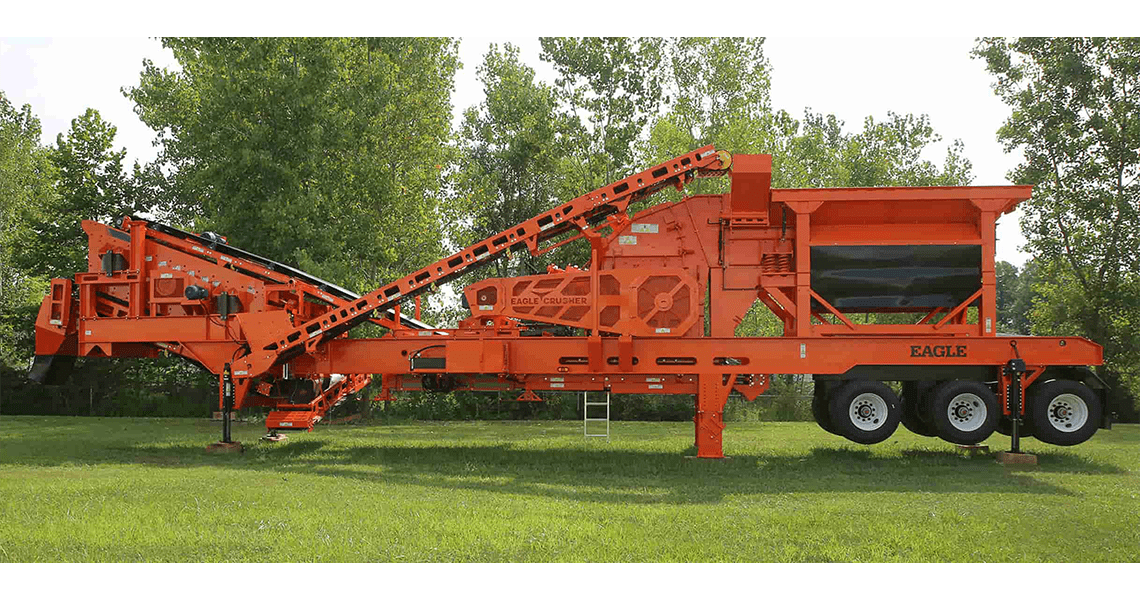

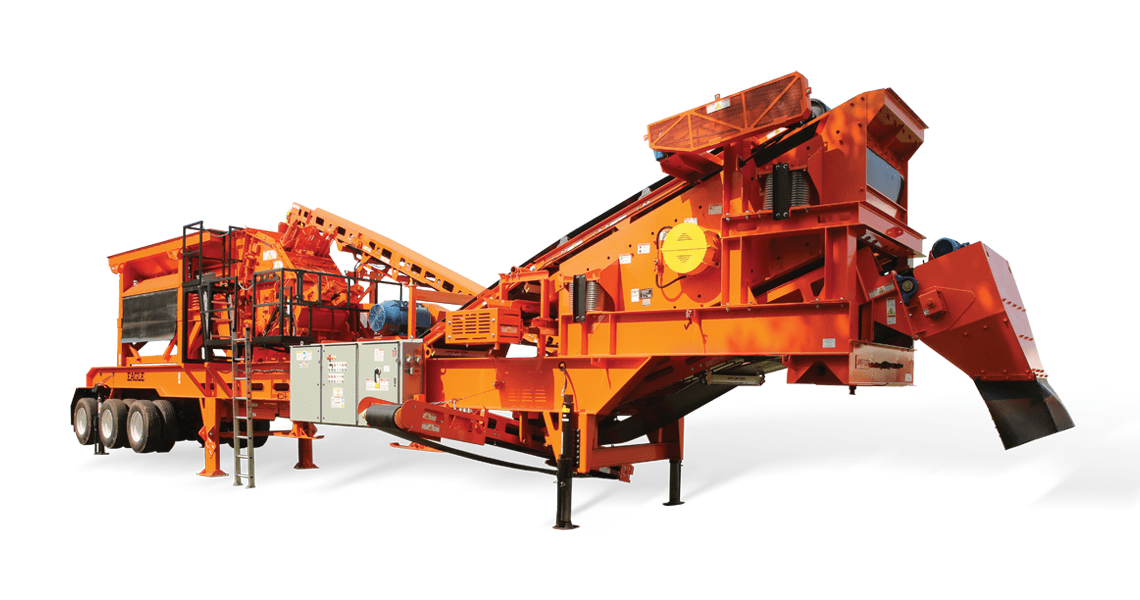

Eagle Crusher Stealth®500 Portable Impact Crusher

Overview

The Stealth®500 plant is designed for smaller-sized jobs that require cubicle spec products from a highly portable crushing and screening plant on one chassis.

Brochure

Features and Benefits

  • Easily transports in one pull. Check with your DOT.
  • Two-deck inclined screen produces two cubical spec products.
  • Top-deck retained material is returned to the crusher for further processing.
  • Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
  • Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
  • Features closed-circuit crushing and screening on one chassis.
  • Replaces Jaw/Cone/Screen multi-unit systems for a much lower initial investment while maintaining a high production of cubical spec product. Greatly reduces maintenance and fuel costs and is easily transported.
  • Features unique two-step, 5’ grizzly deck to remove fines before crushing.
  • Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
  • Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
  • Transports easily with the hydraulic retractable return conveyor.
  • Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Key Specifications

  • Impactor: UM-05
  • Operating Length: 19.2 m / 63′ 0”
  • Gross Weight: 38,600 kg / 85,000 lbs
  • Travel Length: 18.3 m / 60’ 0”
  • Travel Width: 3.6 m / 11’ 11”
  • Travel Height: 4.1 m / 13’ 6”
  • Feed Hopper Capacity: 6.9 m3 / 9 yd3
  • Feed Hopper Capacity (Tons): 11.1 MT / 12.2 T
  • Vibrating Feeder: 4.9 m x 0.8 m / 16′ x 32″
  • Feeder Grizzly Deck: 1524 mm 2 step / 60″ long 2 step
  • Discharge Conveyor Width: 914 mm / 36″
  • On-Plant Power Supply: 112 kW / 150 Hp all-electric power
  • Two Deck Inclined Screen: 1.2 m x 3.7 m / 4′ x 12′
  • Top Screen Deck Cross Conveyor Width: 457 mm / 18″
  • Bottom Screen Deck Cross Conveyor Width: 457 mm / 18”
  • Fines Screen Conveyor Width: 1067 mm / 42”
  • Return Conveyor (Hydraulic Fold) Width: 457 mm / 18″
