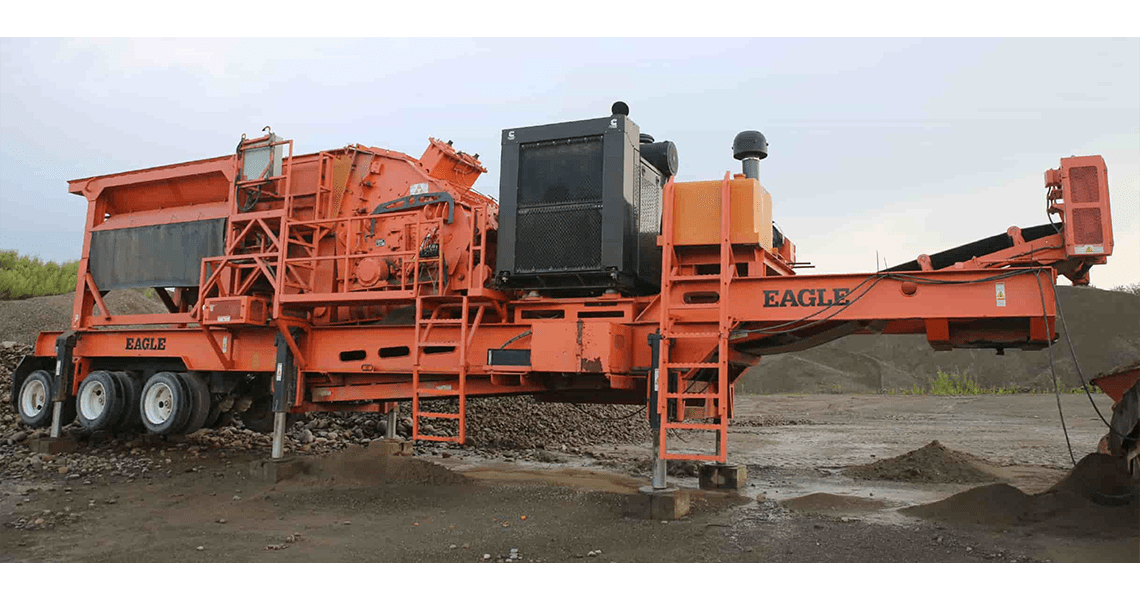

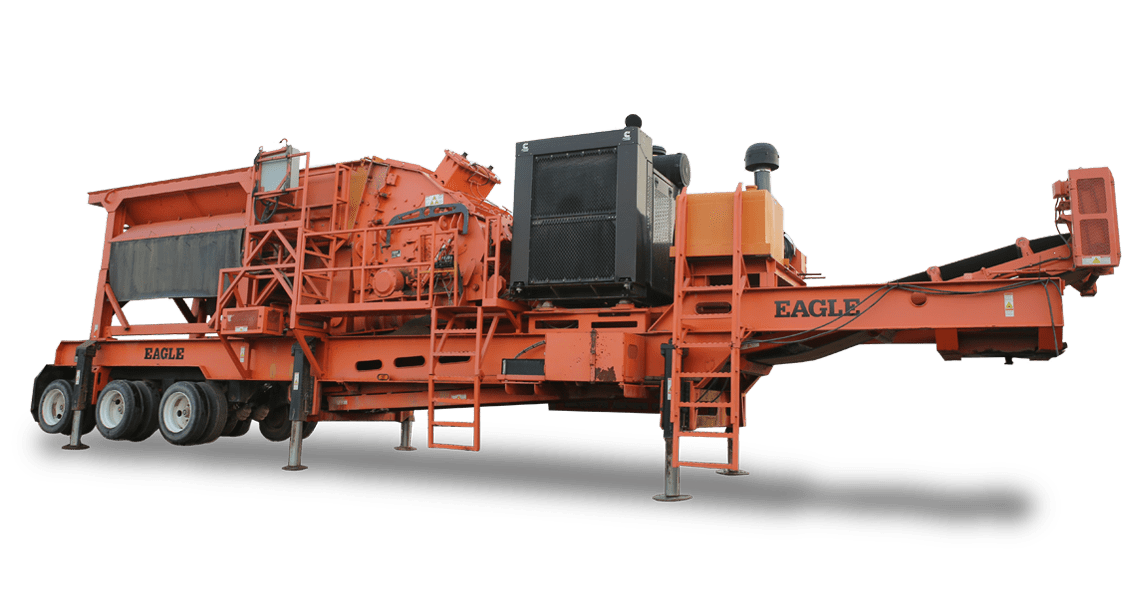

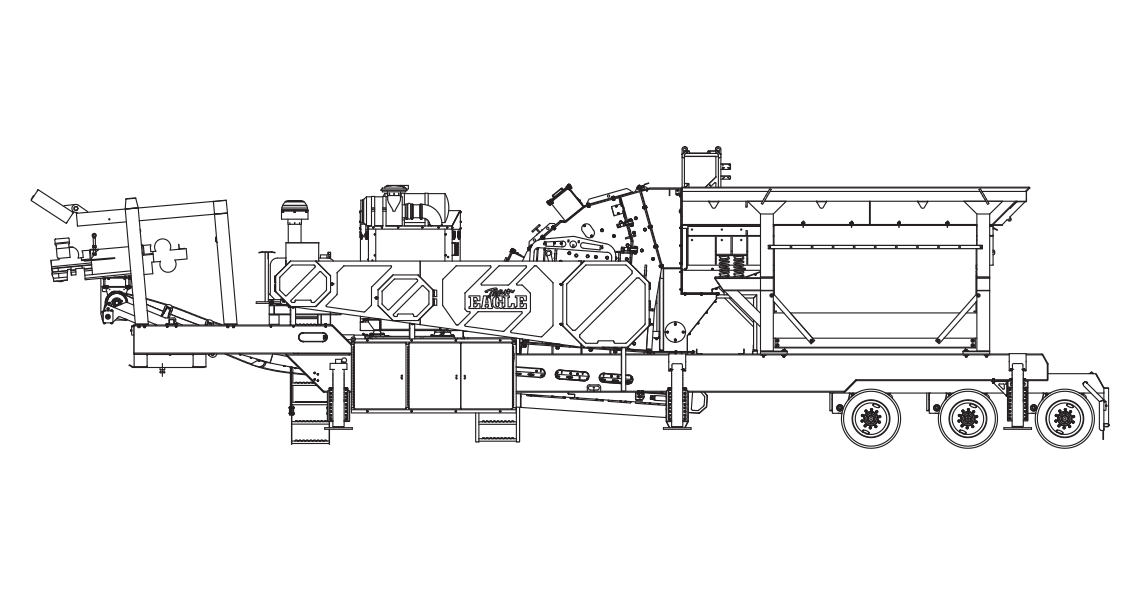

Eagle Crusher UltraMax® 1200-25 CV Portable Impact Crusher

Overview

The UltraMax® 1200-CV highly portable impactor plant is one of the most durable, reliable, and versatile plants for your medium-sized jobs.

Brochure

Features and Benefits

  • Easily transports in one pull. Check with your DOT.
  • Optional electro-magnet is available as a cross-belt or in-line installation that stays on for transport.
  • Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
  • Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
  • Replaces dual crusher systems for a much lower initial investment and for greatly reduced maintenance, fuel and transportation costs.
  • Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
    Features unique two-step, 5’ grizzly deck to remove fines before crushing.
  • Utilizes side-discharge conveyor (OC model) with receiving hopper and replaceable liners, optional full-length skirtboards and available, in-line electro-magnet that stays on for trailer transport.
  • Side-discharge conveyor (OC model) is available in road-portable version.
  • Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
  • Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
  • Includes wireless remote control for the feeder shutdown and all motor stop.
  • Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Key Specifications

  • Impactor: UM-25
  • Operating Length: 15.9 m / 52′ 0″
  • Gross Weight: 43,500 kg / 96,000 lbs
  • Travel Length: 14.9 m / 48′ 10″
  • Travel Width: 3.6 m / 11′ 11″
  • Travel Height: 4.1 m / 13′ 5″
  • Feed Hopper Capacity: 13.0 m3 / 17 yd3
  • Feed Hopper Capacity (Tons): 20.9 MT / 23.0 T
  • Vibrating Feeder: 5.5 m x 1.2 m / 18′ x 45.5″
  • Feeder Grizzly Deck: 1524 mm 2 step / 60” long 2 step
  • Discharge Conveyor Width: 1067 mm / 42″
  • Discharge Conveyor Height: 2600 mm / 8′ 6.5″
  • On-Plant Power Supply Diesel: 335 kW / 450 Hp diesel engine & 140 kW generator
  • On-Plant Power Supply Electric: 224 kW / 300 Hp all-electric power
