Eagle Crusher UltraMax® 1200-25 OCSS Secondary Plant
Overview
Regardless of the primary crusher you’re using, the Eagle UltraMax® 1200-OCSS Impactor is so versatile, it’s a perfect fit as a secondary crusher.
Features and Benefits

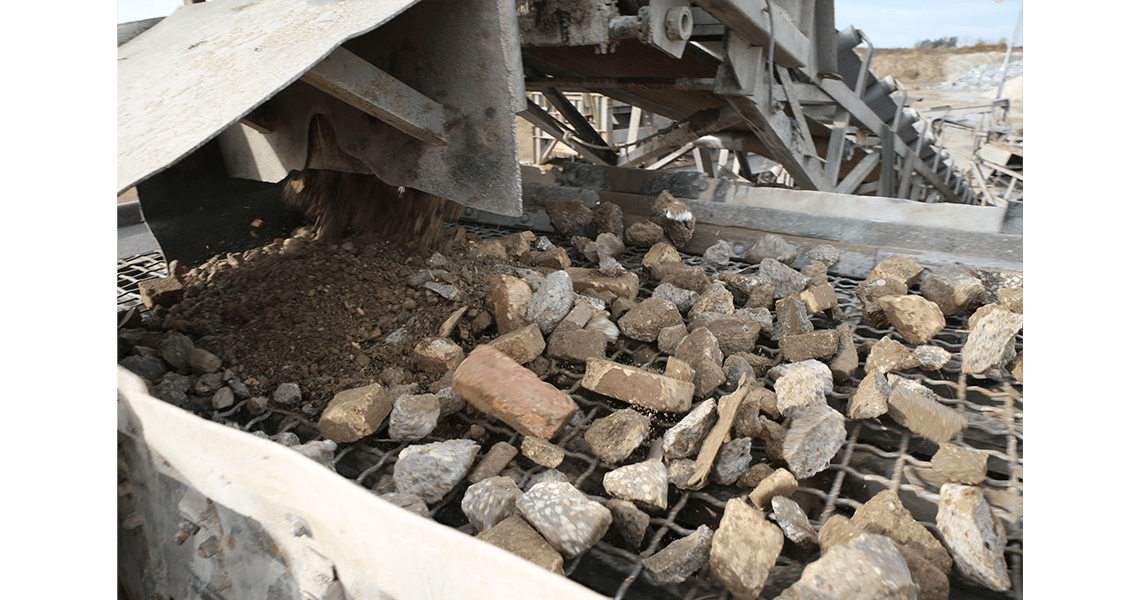

- Includes triple-deck horizontal screen module for screening before crushing.
- Screen maintenance platforms are available for both sides of screen.
- Side-discharge conveyor transports the crushed material to other equipment for further processing, stockpiling or to another conveyor for re-circulating back to the plant screen for sizing.
- Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
- Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down. Side-discharge conveyor transports the crushed material to other equipment for further processing, stockpiling or to another conveyor for re-circulating back to the plant screen for sizing.
- Features screening options for multiple spec products.
- Top deck retained material feeds into the impactor for size reduction.
- Middle deck retained material feeds onto a chute into the impactor for size reduction.
- Bottom deck retained material feeds onto a cross conveyor for stockpiling.
- Material passing through the bottom deck feeds onto the fines conveyor and discharges to the back of the plant.\

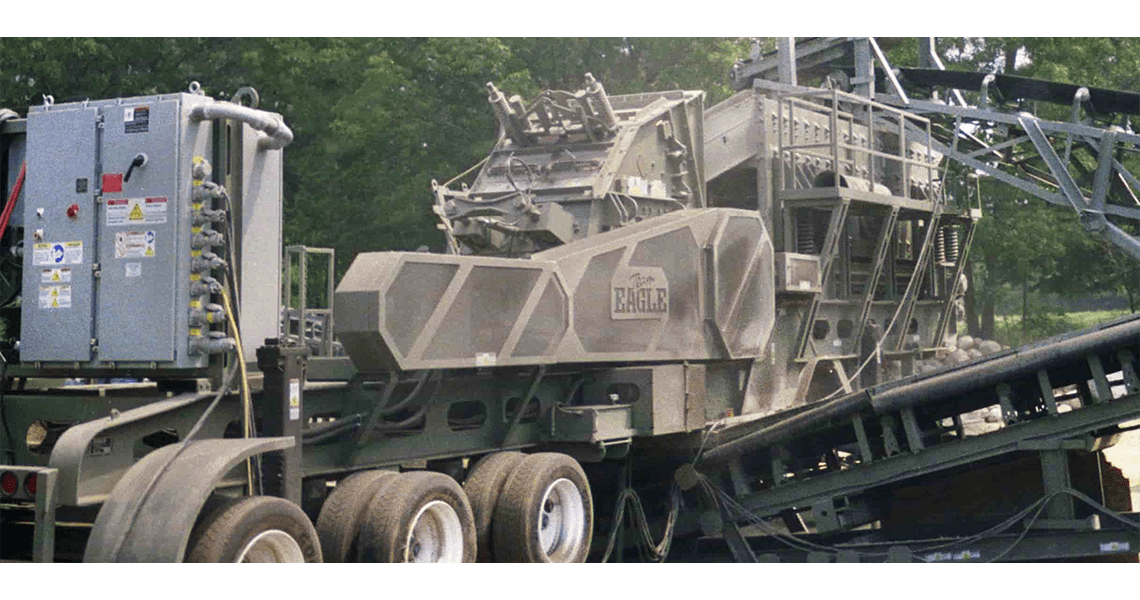

- Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
- Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)
Key Specifications
- Impactor: UM-25
- Screen: 1.8 m x 6.0 m 3-deck incline / 6′ x 20′
- Operating Length: 15.7 m / 51’ 8”
- Overall Weight: 45,400 kg / 100,000 lbs
- Travel Length: 14.3 m / 47’ 0”
- Travel Width: 3.6 m / 11’ 11.5”
- Travel Height: 4.1 m / 13’ 6”
- On-Plant Power Supply Diesel: 354 kW / 475 Hp diesel engine & 200 kW generator
- On-Plant Power Supply Electric: 186 kW / 250 Hp all-electric power
- Discharge Conveyor Width: 1067 mm / 42″
- Top Screen Deck Discharge: INTO CRUSHER
- Middle Screen Deck Discharge: ONTO CHUTE INTO CRUSHER
- Bottom Screen Deck Cross Conveyor Width: 610 mm / 24″
- Fines Screen Conveyor Width: 1524 mm / 60″
- Top Screen Cross Conveyor Width: 457 mm / 18″
- Bottom Screen Deck Cross Conveyor Width: 610 mm / 24″
- Fines Screen Conveyor Width: 1067 mm / 42″
