Overview

Primary Features

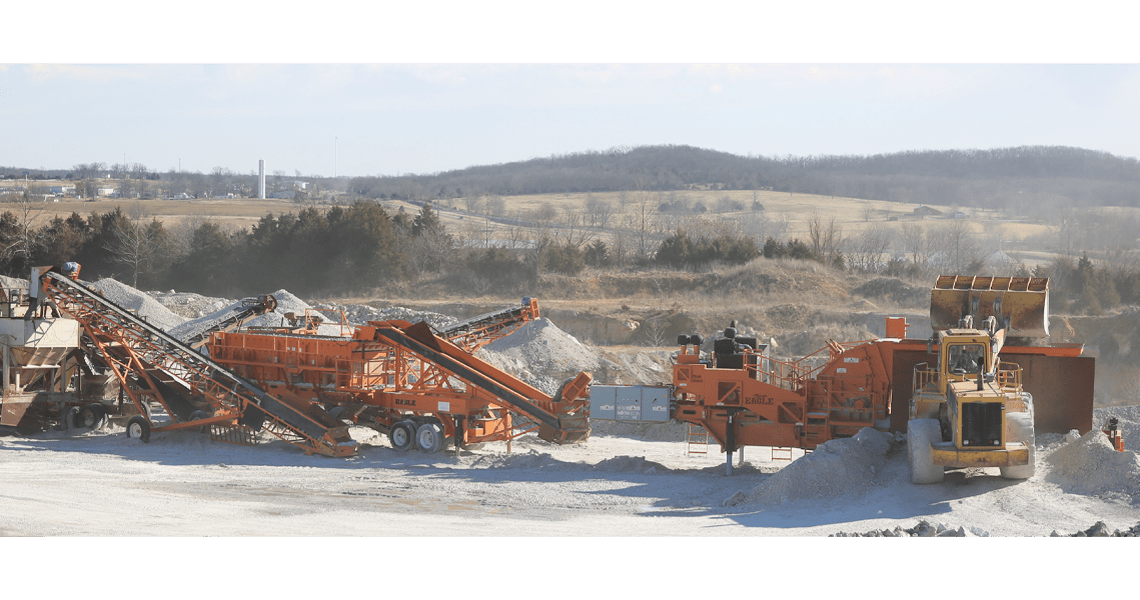

• Includes the 1400-45 OC with a side-discharge conveyor, 6×20 screening plant with an integrated feed conveyor, return conveyor with a cleated belt and three, radial-stacking conveyors.
• Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs and the available run-on hydraulic legs for the screening plant.
• The removable electric control panels are designed for the integrated system including prewired receptacles for the radial stackers.
• Available in-line electro-magnet on the side-discharge conveyor.
• Totally self-contained, reliable diesel/ electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
• Includes 6×20 screening plant with integrated feed conveyor of screen.
• Using the conveyor, ability to return oversized product from the screening plant to the crusher hopper for further reduction or to stockpile.
• Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Additional Features

• Replaces large complex crusher and screening systems for a much lower initial investment and for greatly reduced maintenance, fuel and transportation costs.
• Produces three cubicle spec products simultaneously and returns the oversized product from the screening plant to the UltraMax® impactor plant for further reduction or to stockpile.
• Designed for maximum portability with ease of operation and ease of service.
• Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
• Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
• Includes wireless remote control for the feeder shutdown and all motor stop.
