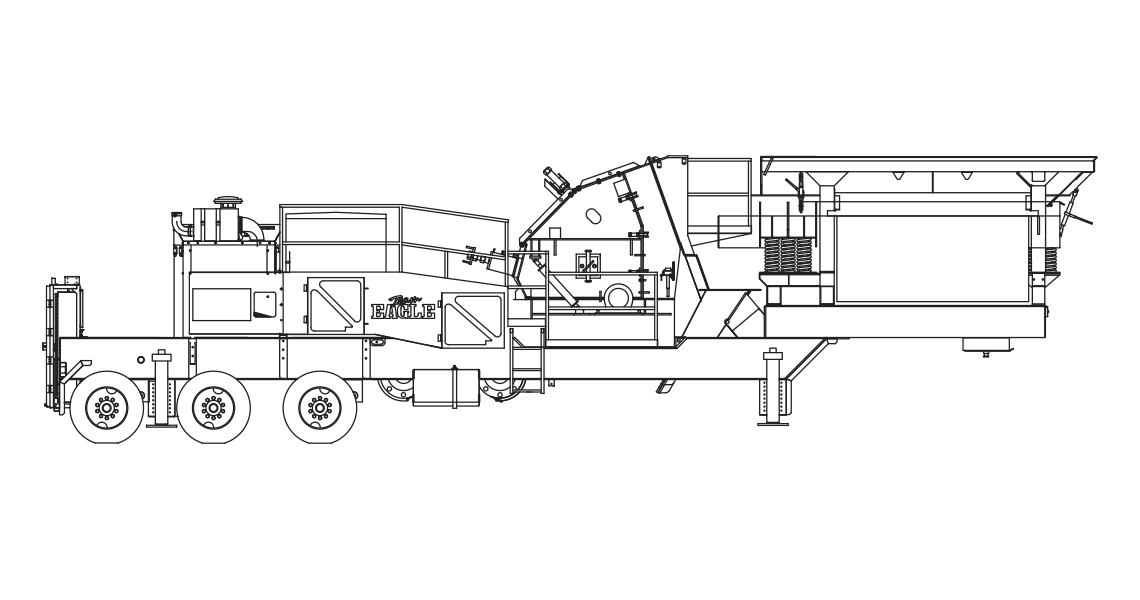

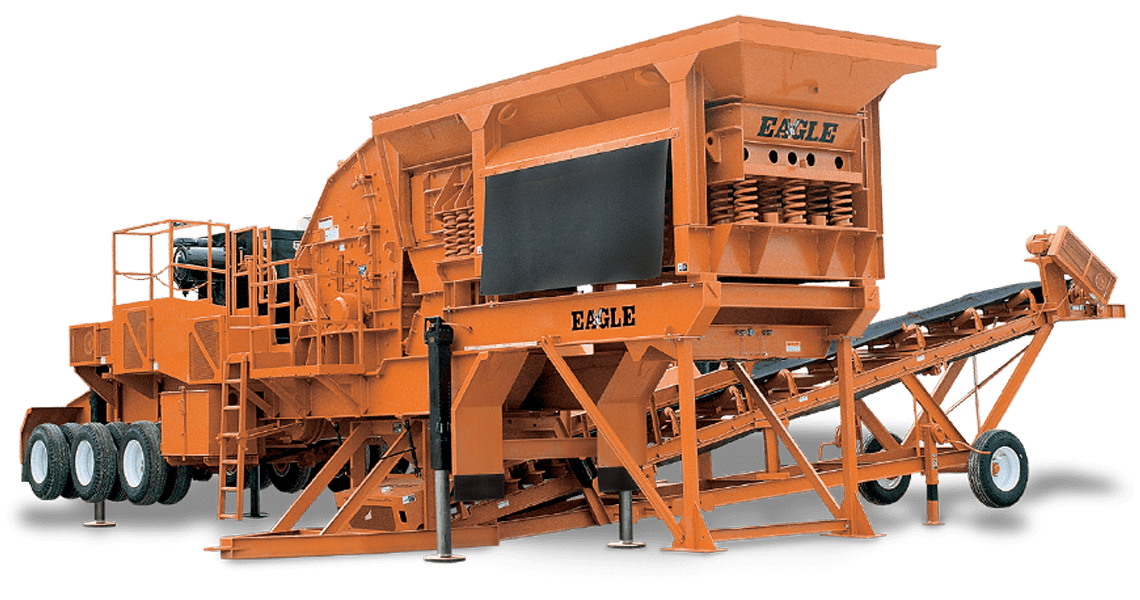

Eagle Crusher UltraMax® 1400-45 OC Portable Impact Crusher

Overview

The UltraMax® 1400-OC highly portable impactor plant is one of the most durable, reliable, and versatile plants for your larger-sized jobs.

Brochure

Features and Benefits

  • Discharge material feeds to a separate conveyor coming out of the side of the crusher at a 90-degree angle.
  • Available in-line electro-magnet on side-discharge conveyor.
  • Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
  • Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
  • Replaces dual crusher systems for a much lower initial investment and for greatly reduced maintenance, fuel and transportation costs.
  • Features unique two-step, 5’ grizzly deck to remove fines before crushing.
  • Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
  • Utilizes side-discharge conveyor with receiving hopper and replaceable liners, optional full-length skirtboards and available, in-line electro-magnet that stays on for trailer transport.
  • Side-discharge conveyor is available in road-portable version.
  • Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
  • Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
  • Includes wireless remote control for the feeder shutdown and all motor stop.
  • Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Key Specifications

  • Impactor: UM-45
  • Operating Length: 15.2 m / 50′ 0″
  • Gross Weight: 55,800 kg / 123,000 lbs
  • Travel Length: 13.6 m / 44′ 6″
  • Travel Width: 3.6 m / 11′ 11″
  • Travel Height: 4.1 m / 13′ 5″
  • Feed Hopper Capacity: 14.5 m3 / 19 yd3
  • Feed Hopper Capacity (Tons): 23.3 MT / 25.7 T
  • Vibrating Feeder: 5.5 m x 1.5 m / 18′ x 57″
  • Feeder Grizzly Deck: 1524 mm 2 step / 60” long 2 step
  • Discharge Conveyor Width: 1067 mm / 42″
  • Discharge Conveyor Height: 2816 mm / 9′ 3″
  • On-Plant Power Supply Diesel: 373 kW / 500 Hp diesel engine & 200 kW generator
  • On-Plant Power Supply Electric: 298 kW / 400 Hp all-electric power
