Overview

Primary Features

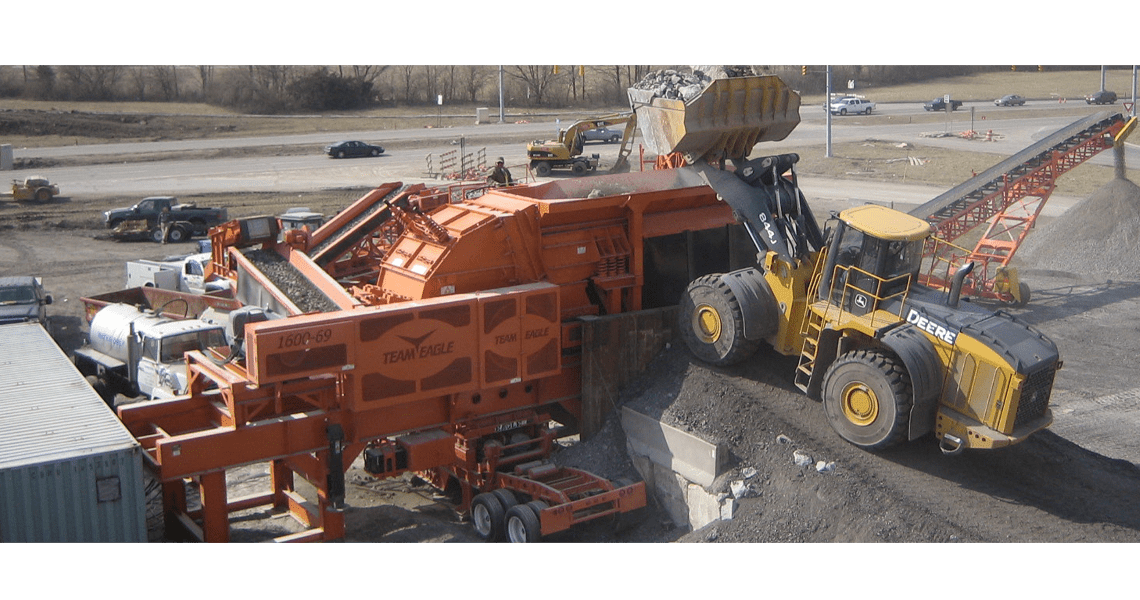

• Includes the 1600-69 OC, side-discharge conveyor with vibrating pan feeder, 6×20 screening plant with an integrated feed conveyor, return conveyor with a cleated belt and three, radial-stacking conveyors.
• Hydraulic lift and leveling systems on the impactor and screen simplifies set up and tear down.
• The electric control panels for the crusher and auxiliary equipment of the 1600-69 OC plant and 6×20 screening plant are free standing, enabling multiple location options.
• Available in-line electro-magnet on the 1600-69 OC side-discharge conveyor.
• Designed for all-electric power.
• Includes 6×20 screening plant with integrated feed screen conveyor.
• Includes return conveyor from screen plant to crusher hopper.
• Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Primary Features

• Replaces very large complex crusher and screening systems for a much lower initial investment and for greatly reduced maintenance, fuel and transportation costs.
• Produces three cubicle spec products simultaneously and returns the oversized product from the screening plant to the UltraMax® impactor plant for further reduction.
• Side-discharge conveyor is available in road-portable version.
• Features standard grizzly fines conveyor that allows material that passes through the grizzly to be discharged from the plant for stockpiling.
• Side-discharge conveyor has a vibrating pan feeder, receiving hopper with replaceable liners, available full-length skirtboards and optional in-line electro-magnet.
• Second 6×20 screening plant can be added for even higher production of cubicle spec products.
• Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
• Includes wireless remote control for the feeder shutdown and all motor stop.
