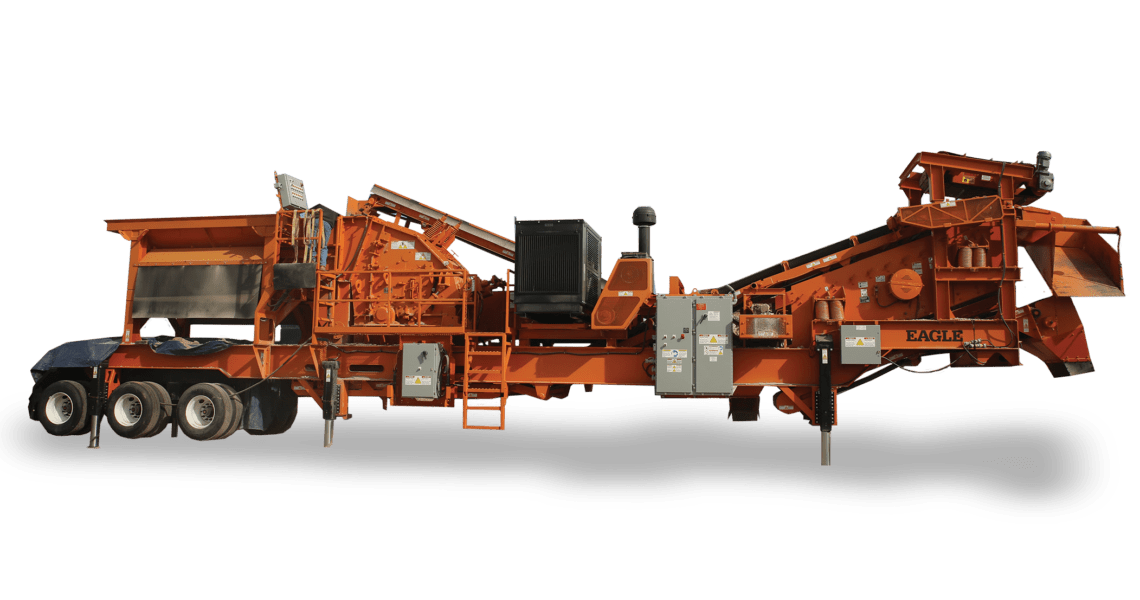

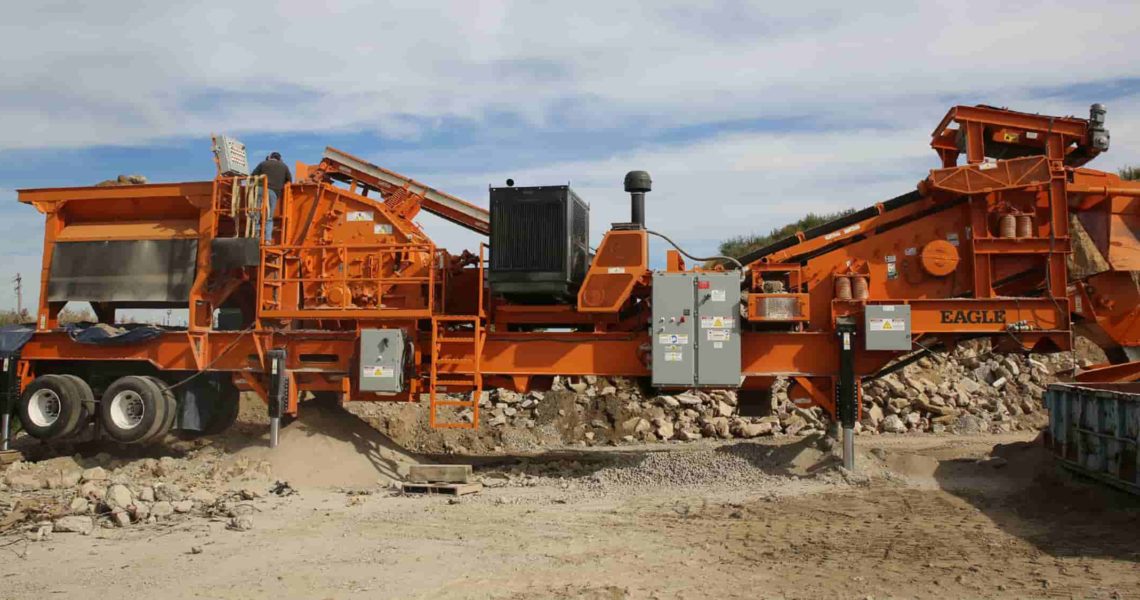

Overview

Features and Benefits

• Easily transports in one pull. Check with your DOT.
• Two-deck inclined screen produces two cubical spec products.
• Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
• Top-deck retained material is returned to the crusher for further processing.
• Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
• Available in-line electro-magnet removes for transport.
• Features closed-circuit crushing and screening on one chassis.
• Replaces Jaw/Cone/Screen multi-unit systems for a much lower initial investment while maintaining a high production of cubical spec product. Greatly reduces maintenance and fuel costs and is easily transported.
• Features unique two-step, 5’ grizzly deck to remove fines before crushing.
• Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
• Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
• Transports easily with the hydraulic retractable return conveyor and folding side conveyor.
• Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
• Includes wireless remote control for the feeder shutdown and all motor stop.
• Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

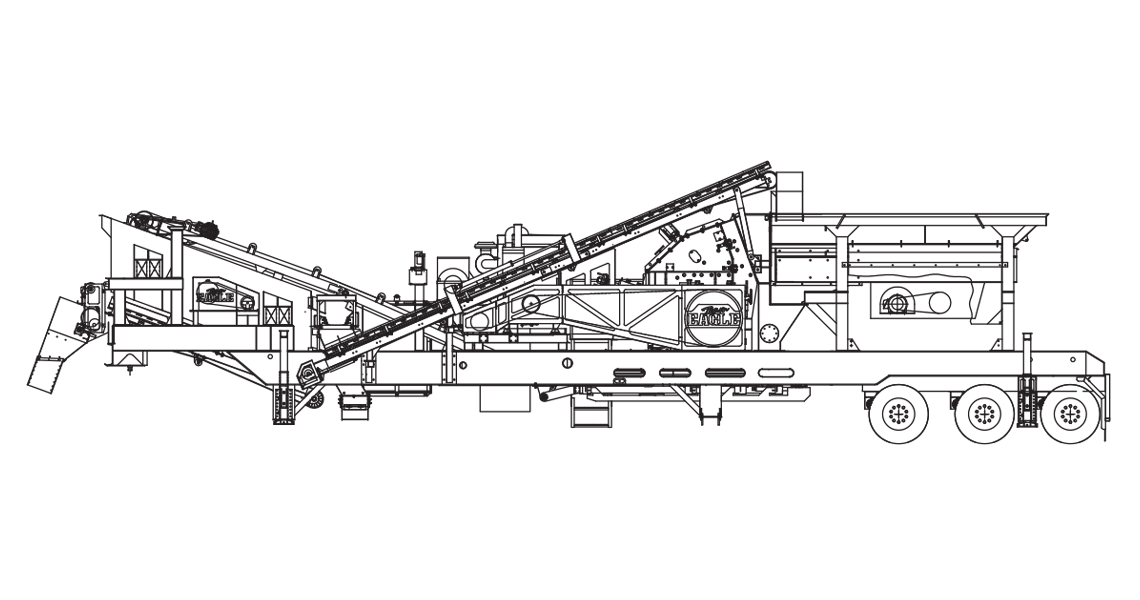

Key Specifications

• Impactor: UM-05
• Operating Length: 19.2 m / 63’ 0”
• Gross Weight: 41,100 kg / 90,500 lbs
• Travel Length: 17.4 m / 57’ 0”
• Travel Width: 3.4 m / 11’ 0”
• Travel Height: 4.1 m / 13’ 6”
• Feed Hopper Capacity: 6.9 m³ / 9 yd³
• Feed Hopper Capacity (Tons): 11.1 MT / 12.2 T
• Vibrating Feeder: 4.9 m x 0.8 m / 16′ x 32″
• Feeder Grizzly Deck: 1524 mm 2 step / 60″ long 2 step
• Discharge Conveyor Width: 914 mm / 36″
• On-Plant Power Supply Diesel: 184 kW / 250 Hp diesel engine & 80 kW generator
• On-Plant Power Supply Electric: 112 kW / 150 Hp all-electric power
• Two Deck Inclined Screen: 1.2 m x 3.7 m / 4′ x 12′
• Top Screen Deck Cross Conveyor Width: 457 mm / 18″
• Bottom Screen Deck Chute: Yes
• Fines Screen Conveyor Width: 1067 mm / 42″
• Return Conveyor (Hydraulic Fold) Width: 457 mm / 18″
