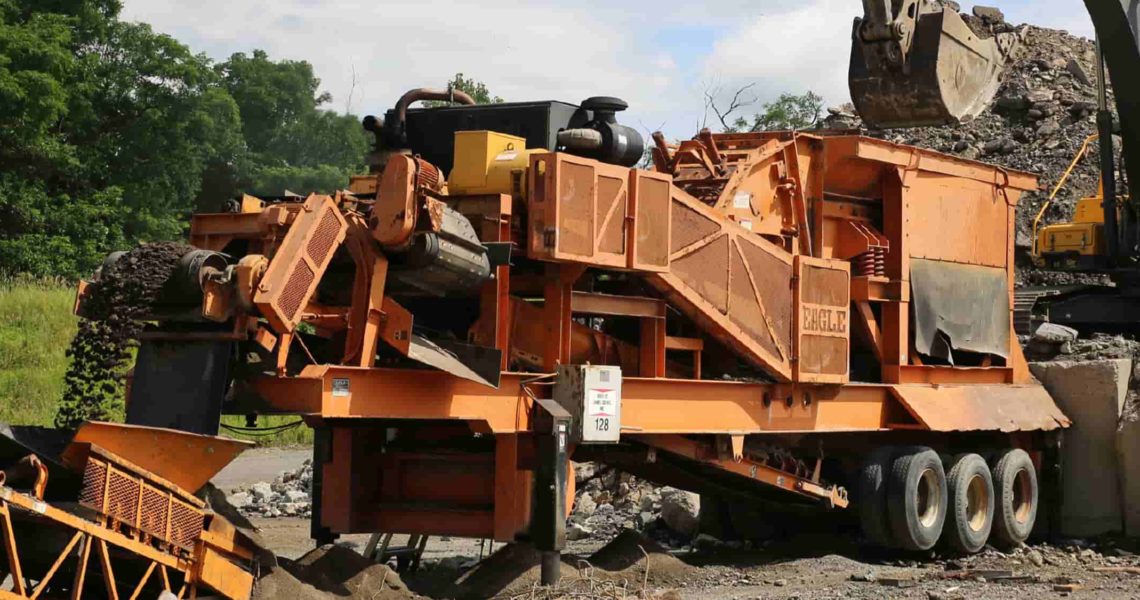

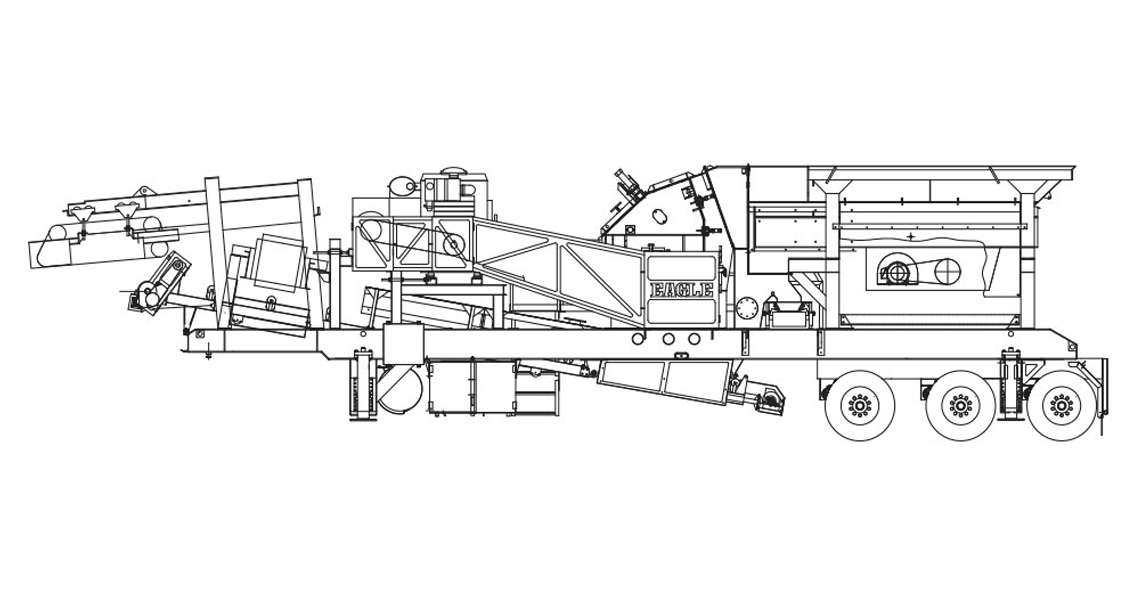

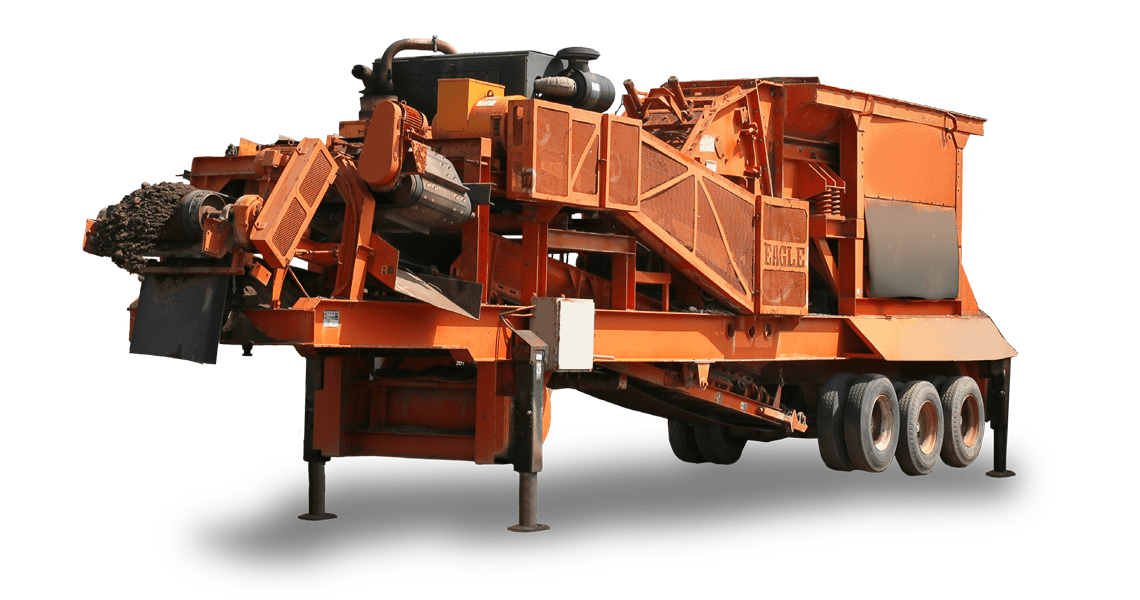

Eagle Crusher UltraMax® 500-05 CV Portable Impact Crusher

The UltraMax® 500-CV highly portable impactor plant is one of the most durable, reliable, and versatile plants for your smaller-sized jobs.

Brochure

Easily transports in one pull. Check with your DOT.
Optional electro-magnet is available as a cross-belt or in-line installation that stays on for transport.
Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
Outperforms similar sized track units for production and quality of product.
Transports with ease. Just hook up the tractor and go. No additional or specialized trailer necessary.
Moves easily around the job site with the optional dolly kit with pintle hitch.
Manage the feeder speed for complete control of the flow of material into the impactor with Variable Frequency Drive (VFD).
Features unique one-step, grizzly deck to remove fines before crushing.
Features standard grizzly bypass chute and available cross-belt conveyor with flop gate to allow for either removal of the material that passes through the grizzly deck for stockpiling or blending back with the crushed material.
Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
Includes wireless remote control for the feeder shutdown and all motor stop.
Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)

Impactor: UM-05
Operating Length: 14.8 m / 48’ 6”
Gross Weight: 33,100 kg / 73,000 lbs
Travel Length: 13.5 m / 44’ 6”
Travel Width: 2.6 m / 8’ 6”
Travel Height: 4.1 m / 13’ 5”
Feed Hopper Capacity: 6.9 m³/ 9 yd³
Feed Hopper Capacity (Tons): 11.1 MT / 12.2 T
Vibrating Feeder: 4.9 m x 0.8 m / 16′ x 32″
Feeder Grizzly Deck: 1524 mm 2 step / 60″ long 2 step
Discharge Conveyor Width: 762 mm / 30″
Discharge Conveyor Height: 2232 mm / 7′ 4″
On-Plant Power Supply Diesel: 168 kW / 225 Hp diesel engine & 80 kW generator
On-Plant Power Supply Electric: 112 kW / 150 Hp all-electric power
