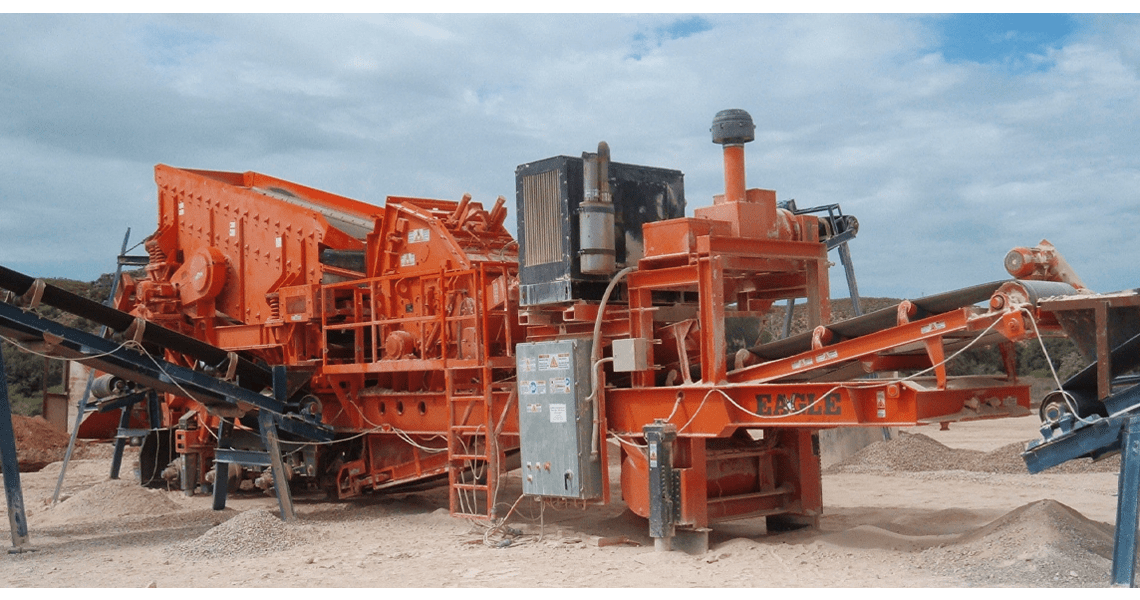

Eagle Crusher UltraMax® 500-05 CVSS Secondary Plant
Overview
Regardless of the primary crusher you’re using, the Eagle UltraMax® 500-CVSS Impactor is so versatile, it’s a perfect fit as a secondary crusher.
Features and Benefits
- Includes triple-deck inclined screen module that adjusts hydraulically from transport to operation mode for screening before crushing.
- Front-discharge conveyor transports the crushed material to other equipment for further processing, stockpiling, or to another conveyor for re-circulating back to the plant screen for sizing.
- Hydraulic lift and leveling system enables quick set up and tear down by using the hydraulic run-on legs.
- Totally self-contained, reliable diesel/electric or all-electric power. You won’t have to worry about hydraulic leaks and failures shutting you down.
- Features screening options for two or three spec products.
- Top deck retained material feeds into the impactor for size reduction.
- Middle deck retained material feeds onto a cross conveyor for stockpiling.
- Bottom deck retained material feeds onto a cross conveyor for stockpiling.
- Material passing through the bottom deck feeds onto the fines conveyor and discharges to the back of the plant.
- Includes removable electrical control panel featuring pre-wired receptacles for radial stackers.
- Features the industry’s only LIFETIME ROTOR WARRANTY on its solid-steel, three-bar, sculptured rotor—the industry’s heaviest—to keep you up and crushing (North America only)
Key Specifications
- Impactor: UM-05
- Screen: 1.5 m x 4.9 m 3-deck incline / 5′ x 16′
- Operating Length: 16.5 m / 54’ 4”
- Overall Weight: 33,100 kg / 73,000 lbs
- Travel Length: 15.4 m / 50’ 6”
- Travel Width: 3.2 m / 10’ 6”
- Travel Height: 4.1 m / 13’ 6”
- On-Plant Power Supply Diesel: 168 kW / 225 Hp diesel engine & 80 kW generator
- On-Plant Power Supply Electric: 112 kW / 150 Hp all-electric power
- Discharge Conveyor Width: 762 mm / 30″
- Top Screen Deck Discharge: INTO CRUSHER
- Middle Screen Deck Cross Conveyor Width: 457 mm / 18″
- Bottom Screen Deck Cross Conveyor Width: 457 mm / 18″
- Fines Screen Conveyor Width: 1067 mm / 42″
- Top Screen Cross Conveyor Width: 457 mm / 18″
- Bottom Screen Deck Cross Conveyor Width: 610 mm / 24″
- Fines Screen Conveyor Width: 1067 mm / 42″
