Overview

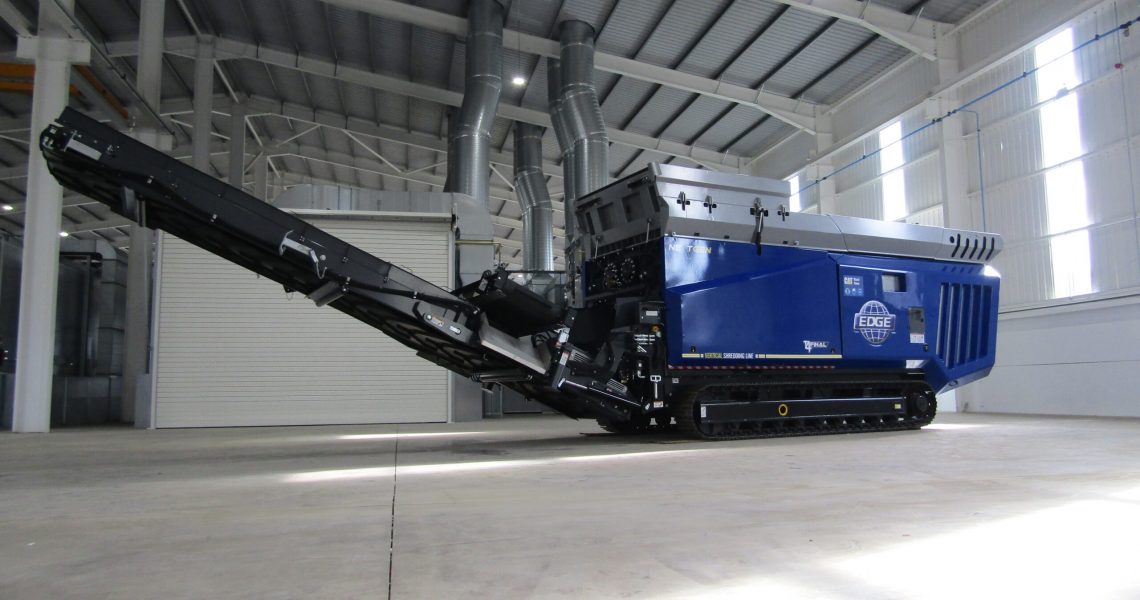

The EDGE VS420 is a high capacity, high torque twin shaft waste shredder that is ideal for the processing of a large array of materials including; green waste, MSW, C&D waste, biomass and end of life tires. EDGE’s next generation shredder has been developed for ultimate versatility and high resistance to contaminants with a number of customizable shredding programs and chamber configurations available. An intelligent operating system which incorporates tramp metal protection provides the ultimate protection from contaminants and prevents asset damage.

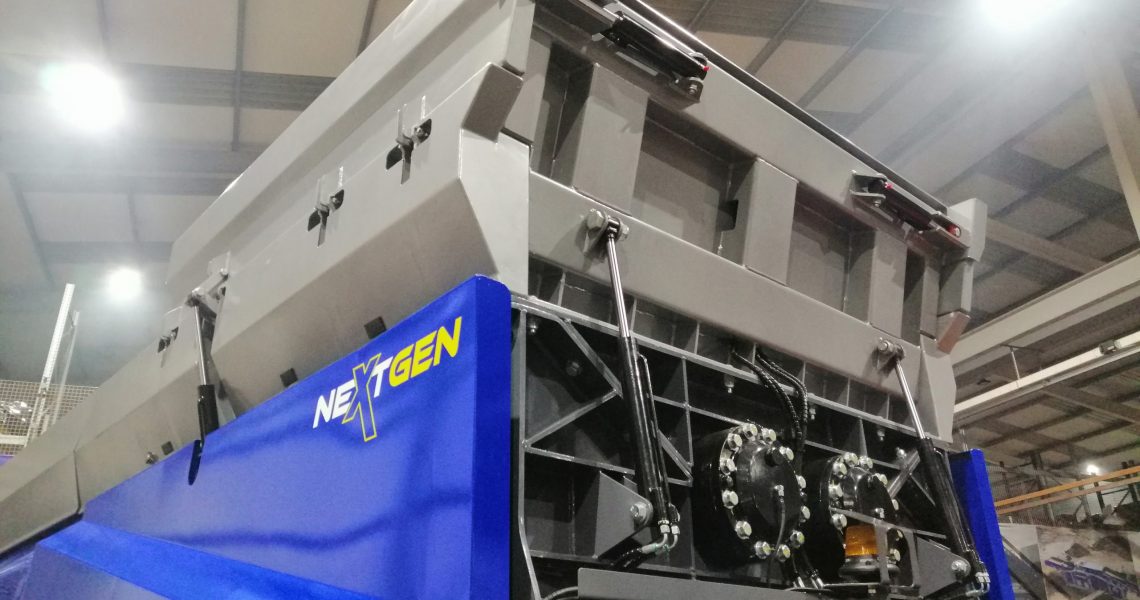

The VS420 twin synchronized, high torque shredder shafts can be customized to suit a customer’s exact application and desired product piece size. EDGE’s twin shaft design provides exceptional material intake, ensures less wear, promotes self-cleaning and prevents material wrapping even in the toughest of applications. Thanks to the VS420 modular service orientated design, the VS420 is easily suited for tracked, wheeled or hooklift mounted chassis formats with all major components being accessible and easy to remove.

AT A GLANCE

• Highly robust design provides high durability and the ability to withstand difficult to shred materials
• Twin Shaft design provides exceptional intake behavior, less wear, self cleaning and prevents material wrapping
• Intelligent Self-Protecting control system with tramp metal cycles prevents against asset damage
• Eco-power saving functionality coupled with a fuel consumption from as little as 25/30ltr/hr. (7-8 US Gallons)

OPTIONS

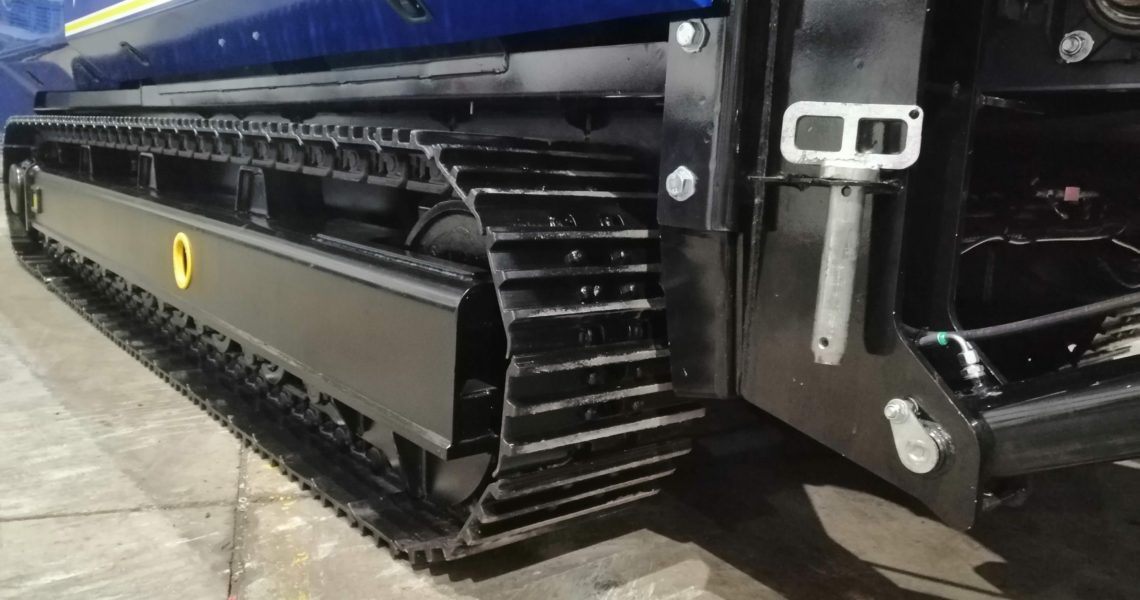

• Chassis format options: Track , Wheel, Static, Hook-lift
• Power-source options: diesel / hydraulic, direct electric
• Various chamber configurations to suit numerous applications
• 2” to 10” basket screens for guaranteed final product piece size
• Hydraulic Height adjustable over-band magnet
• Hydraulic Hopper extensions
• Reversible fan
• Dust suppression
• Central auto-lube greasing

FEATURES

• Powered via a Caterpillar C9.3B Tier 4 Final / STAGE V 310Kw (420HP) engine
• Twin Shaft design provides exceptional intake behavior, less wear, self-cleaning and prevents material wrapping
• Intelligent self-protecting control system
• Latest EDGE Operating System (EOS) with On-board load sensing diagnostics
• “VS Status Alert” a system of lightening signals provide a quick and simple communication link between the machine and the operator
• Improved fuel efficiency combined with eco-power saving functionality
• Complete radio remote control functionality allows for one-man operation
• Hydraulic hopper extensions and automatic tipping hopper cycle

APPLICATIONS

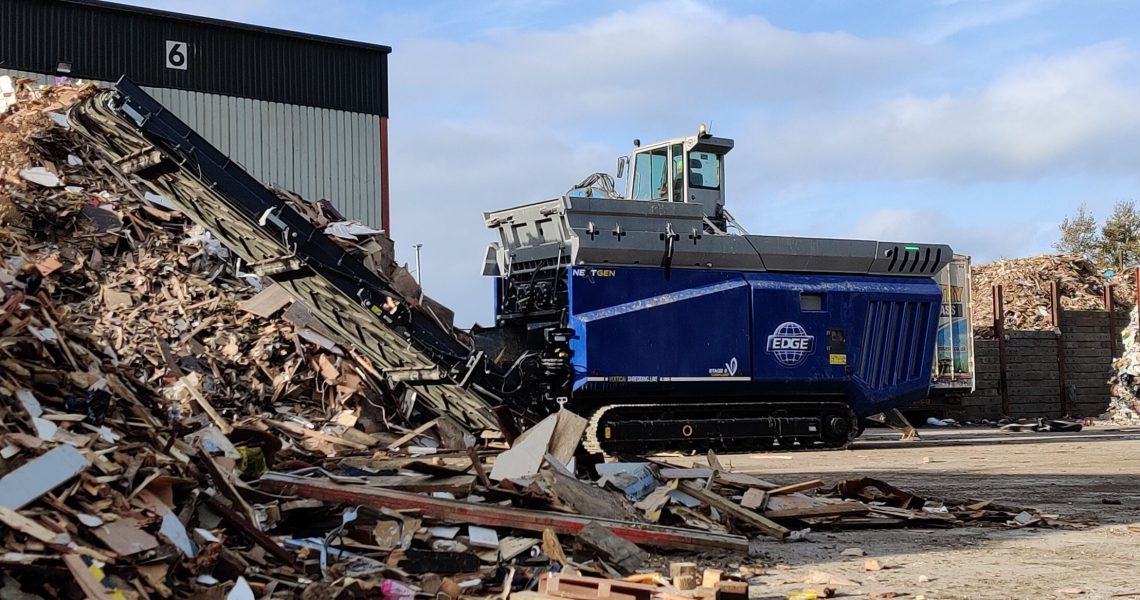

• All types of wood (railway sleepers, pallets)
• C & D (construction & demolition)
• Green waste (including grass, trees, stumps)

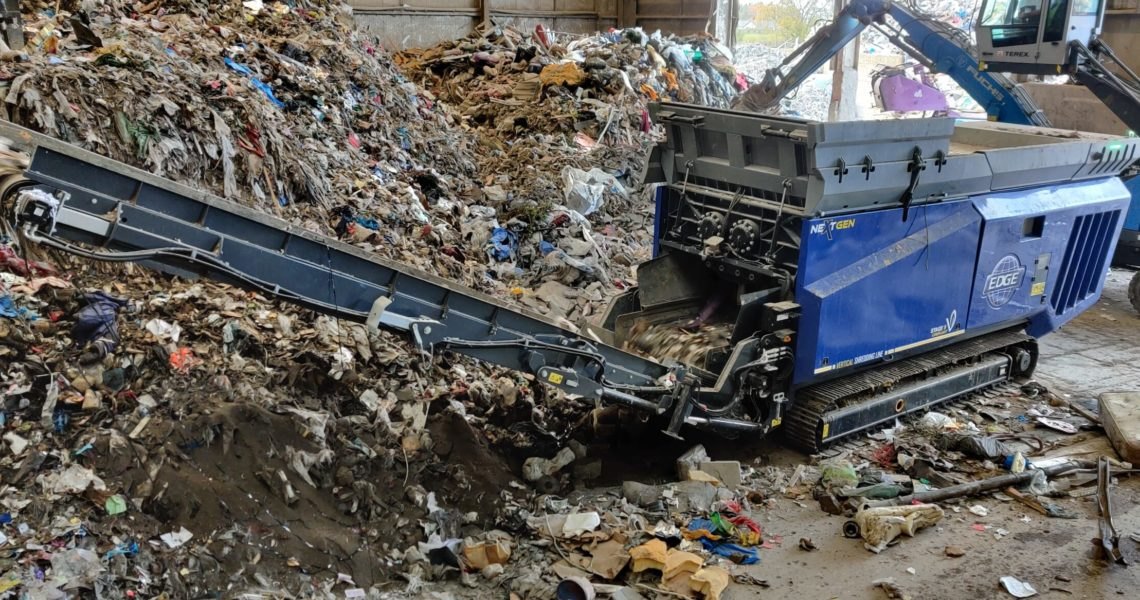

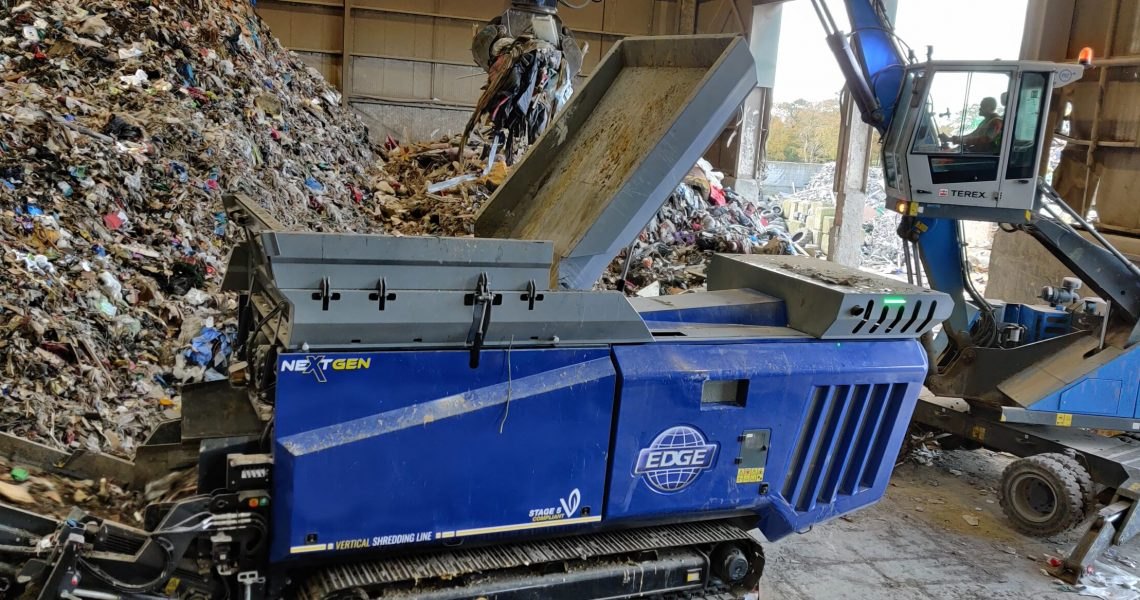

• Domestic and household waste
• Commercial and industrial waste
• White household goods
• Paper and cardboard (including paper rolls)
• Mattresses
• All plastics (including wind turbine blades)
• Rubber tires
