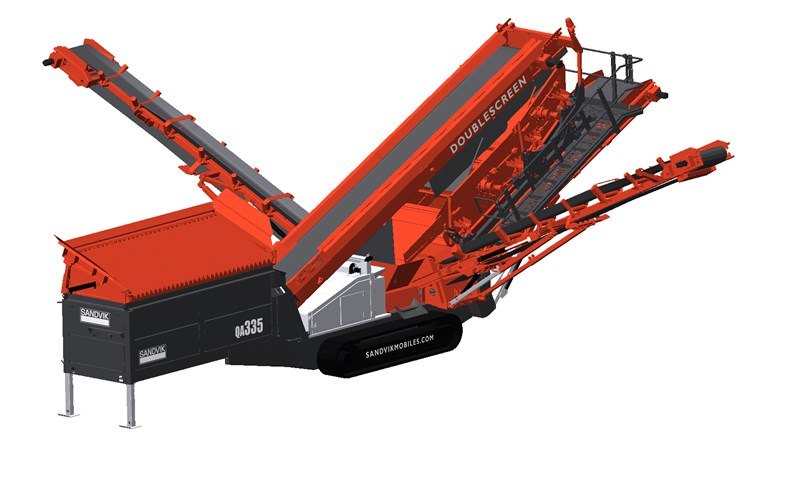

Sandvik QA335 Tracked Doublescreen
Overview
QA335 Doublescreen is a highly productive 13 x 5′ / 3.96 x 1.52 m double deck screen that comes equipped with our patented, world class, heavy duty Doublescreen system. With two independent double deck screens you will effectively get one machine able to perform two screening processes on one plant.
The QA335 is designed to target the specific needs of recycling and contracting projects. It comes equipped with a range of user-friendly features aimed at improving the overall operator experience, with sequential start up, radio remote control and two-speed tracks as standard. It has also been fitted with a complete wrap-around walkway to provide you with a safe working platform for service and maintenance.
Features and Benefits
- Patented Doublescreen screenbox technology 13 x 5′ / 3.96 x 1.52 m
- Versatile unit, capable of producing large volumes of high specification product
- Large volume hopper complete with remote control hydraulic tipping grid
- Easy operation through a unique color-coded control panel with one touch start/stop
- Designed for optimum fuel economy and low operating costs.
Key Specifications
- Screen Box: 13 x 5′ / 3.96 x 1.52 m
- Engine: C4.4 74.5kW / 100hp
- Transport Length: 15.35 m / 50′ 3″
- Transport Width: 3.00 m / 9′ 10″
- Transport Height: 3.40 m / 11′ 2″
- Weight: 26,520 kg / 58,467 lbs
