Overview

The evolution of the tracked scalping screens has been developed from this machine.

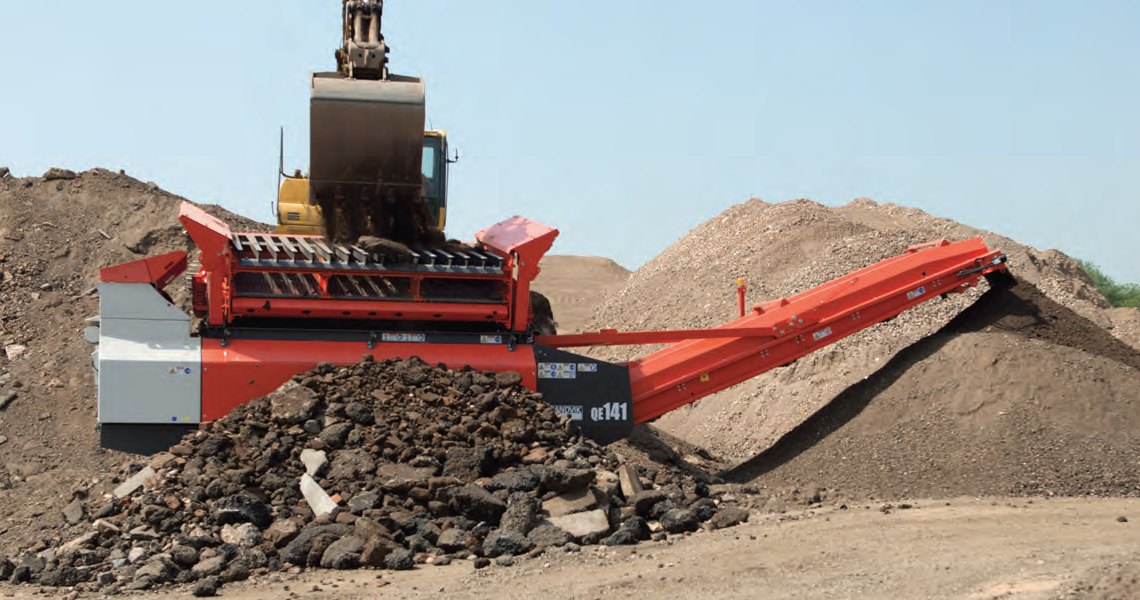

It is one of the most reliable compact scalpers available globally and with its heavy duty double deck vibrating grid it can take a feed size of up to 700mm (27 ½”). It can be used for scalping and screening a wide range of material including topsoil, waste and concrete.

Features and Benefits

• Maximum productivity assured through independent feeder and discharge conveyor
• Ultimate in material handling – make a conical, windrow or radial stockpile
• Rapid deployment with remote tracks and zero set up time
• Radio remote vibrating grid tipping for continuous production
• CAT engine for reliability and parts availability

Key Specifications

• Hopper: 3.66 x 2.44 m / 12′ x 8′
• Engine: CAT C2.8 Stage 5 / T4F 55 kW / 74 hp
• Transport Length: 8.69 m / 28′ 6″
• Transport Width: 2.70 m / 8′ 10″
• Transport Height: 3.16 m / 10′ 4″
• Weight: 20,325 kg / 44,808 lbs
