Mobile Scalpers

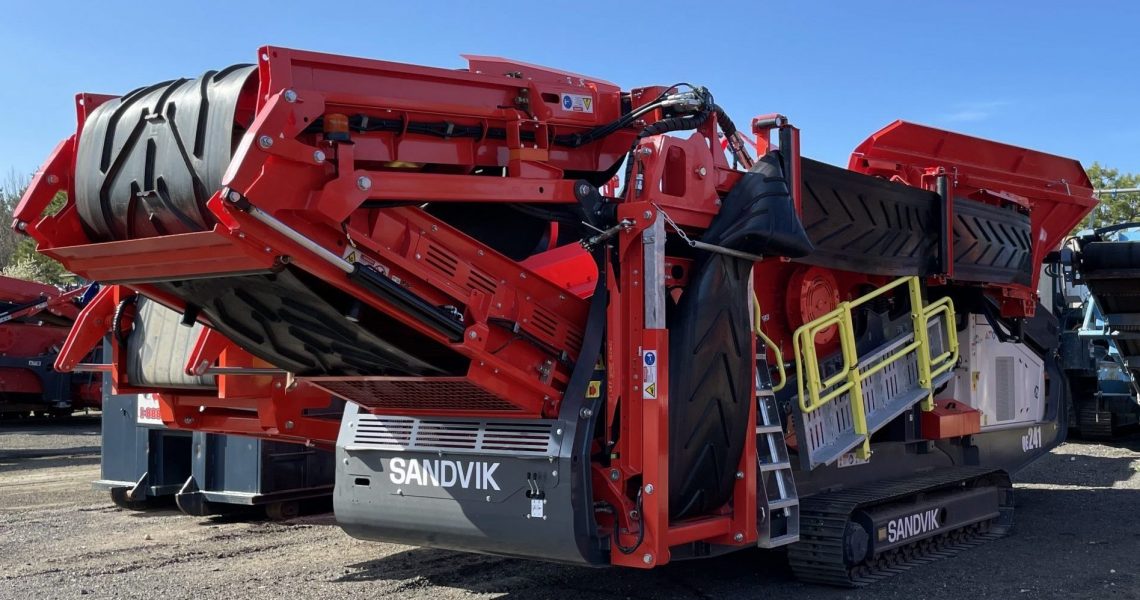

Sandvik QE241 Tracked Scalper

Overview

QE241 is the most compact model in the heavy duty scalper range. It has been designed for the smaller operator who requires a high performing, versatile unit with a smaller operating footprint that is easy to transport.

We have designed the QE241 with a highly aggressive 11′ x 4′ / 3.35 x 1.24 m double deck screenbox for increased screening efficiency. This features a banana type bottom deck arrangement to further improve screening capability.

Brochure

Features and Benefits

  • Biggest screen size in its class 11′ x 4′ / 3.35 x 1.24 m
  • Massive stockpiling capability through integrated hydraulic conveyors
  • Compatible for 2-way or 3-way split configurations
  • Easy operation through a unique color-coded control panel with sequential start / stop
  • Screenbox jack up facility for easy access to bottom deck media

Key Specifications

  • Hopper: 3.35 x 1.24 m / 11′ x 4′
  • Engine: CAT C2.8 Stage 5 / T4F 55 kW / 74 hp
  • Transport Length: 9.99 m / 32′ 8″
  • Transport Width: 2.50m / 8′ 2″
  • Transport Height: 3.10m / 10′ 2″
  • Weight: 18,559 kg / 40,915 lbs
