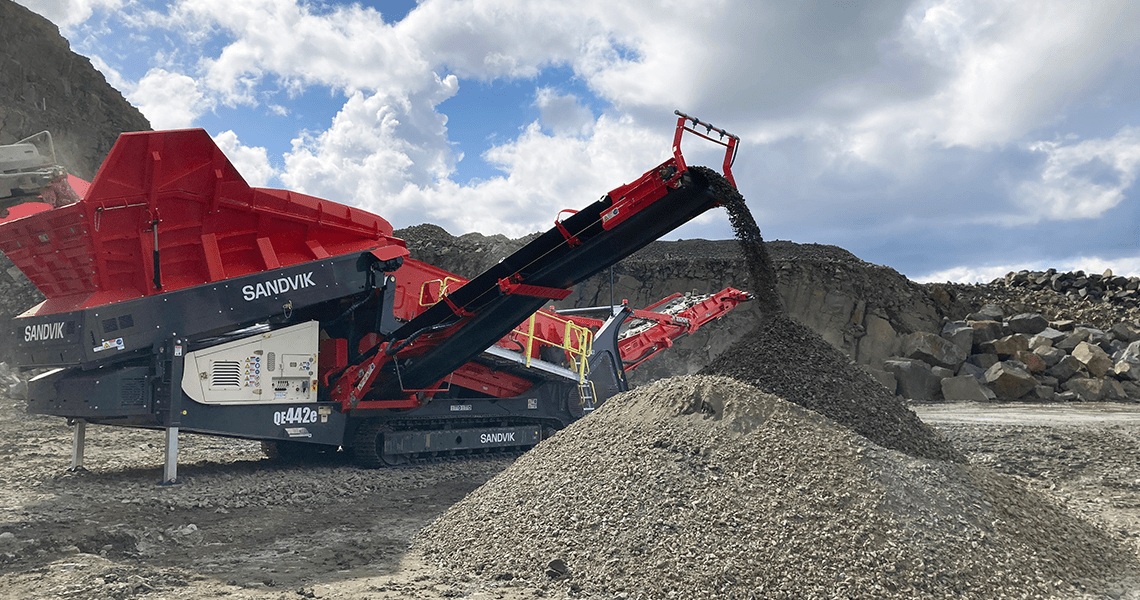

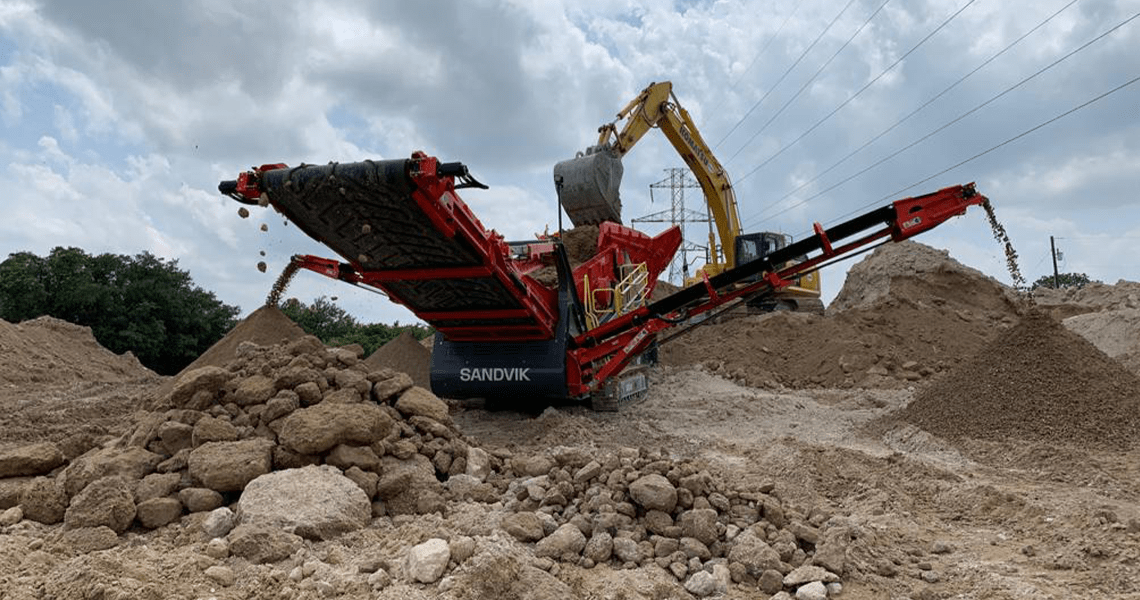

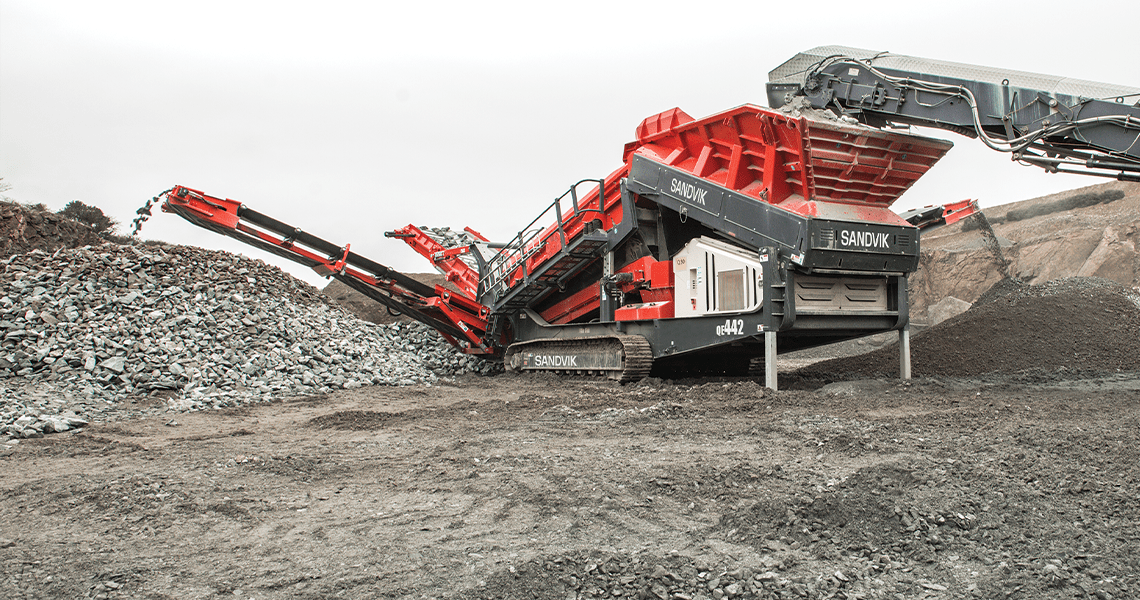

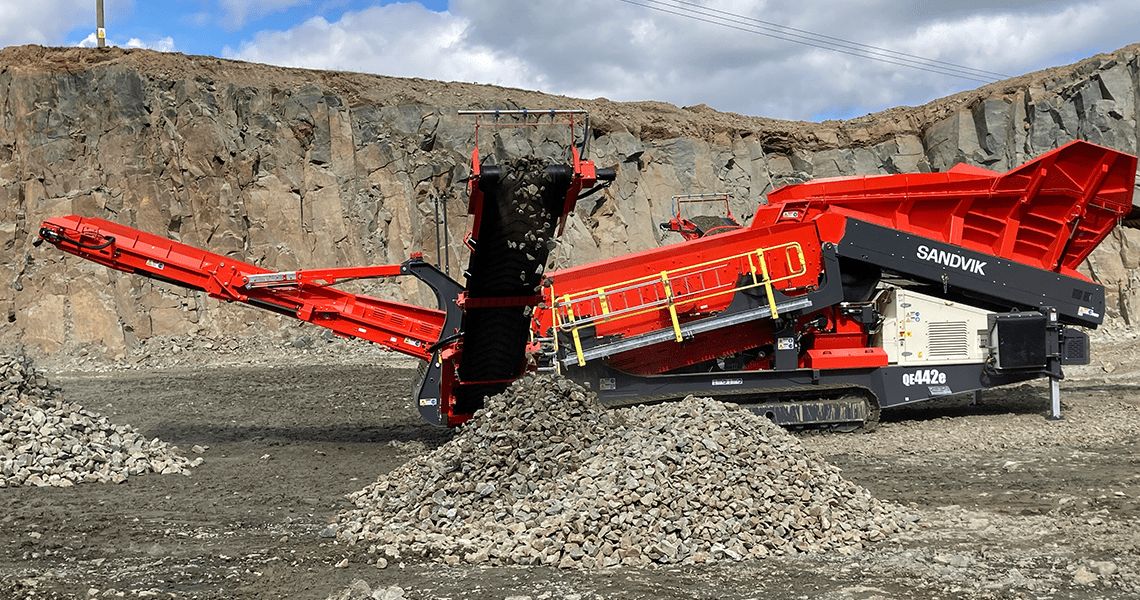

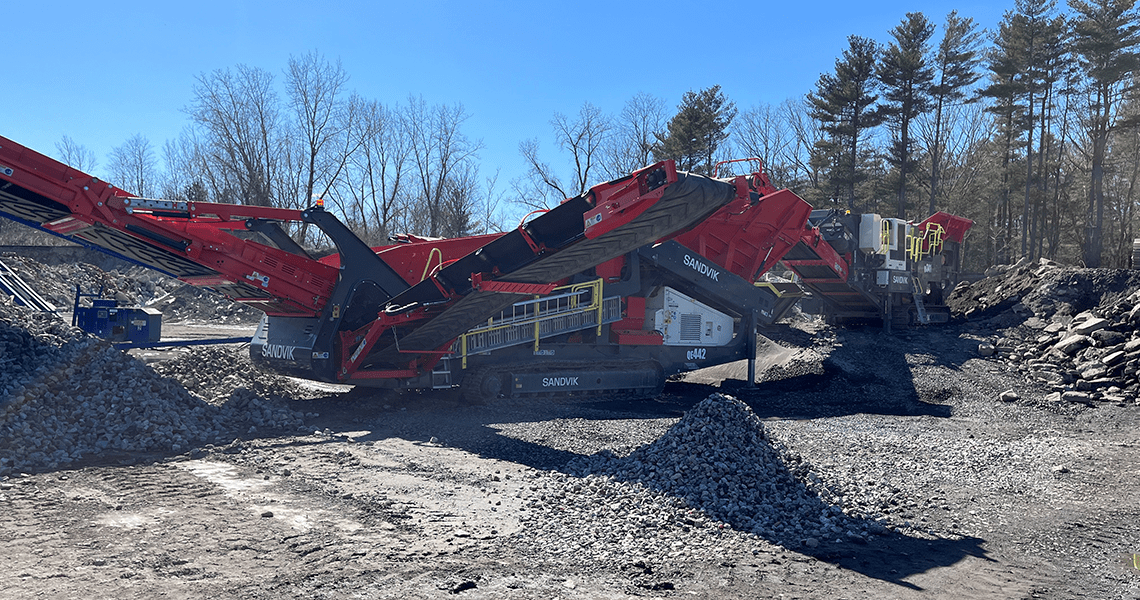

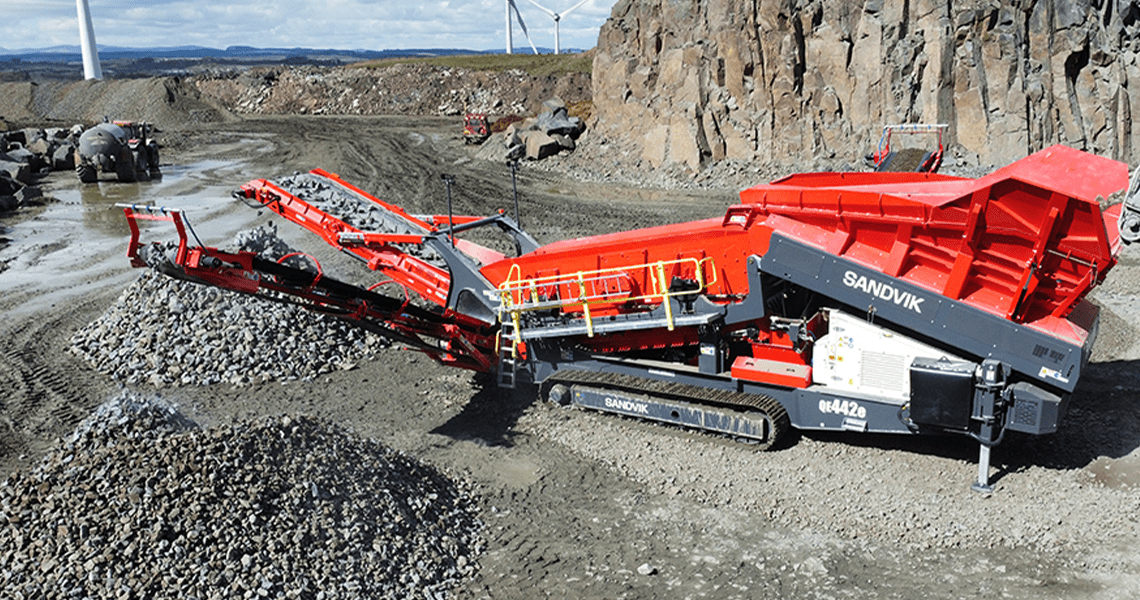

Sandvik QE442 / QE442e Tracked Scalper
Overview
The enormous power of our QE442 scalper has been proven across a variety of applications worldwide. The fines conveyor alone is designed to handle up to 900TPH, making this unit an essential scalper for your operation.
We have designed the QE442 to best suit your requirements, with units including heavy duty I-beam chassis, apron feeder, reinforced hopper doors and impact bar lined overs conveyor all equipped as standard.
This unit includes many features of its predecessor, the QE441, while also incorporating many product refinements for improved plant durability, efficiency, quicker set-up and easier service access. Our QE442 can accept the most robust of infeed material and is best suited to your large quarrying, mining or recycling applications. It can also work as a stand-alone unit feeding a primary crusher.
Features and Benefits
- Heavy duty screen box with high speed and aggressive throw for optimum throughput
- Reduced cost of ownership through extended hydraulic fluid change intervals from 2000hrs to 4000hrs
- Latest generation fuel efficient engines provide maximum performance & cost efficiency
- User friendly PLC control system with sequential start-stop for speed and ease of set-up
- Spacious power pack with improved service access, hydraulics and lighting
- Hybrid “e” drive option with electric plug in available to run in diesel or electric mode
- Remote monitoring system to help optimize your machine operation
Key Specifications
- Screen Box: 5.48 x 1.75m / 18′ x 6′
- Capacity (up to): 900 mtph / 992 stph
- Engine: C4.4 110kW / 147hp
- Transport Length: 16.33m / 53′ 7″
- Transport Width: 3.20m / 10′ 6″
- Transport Height: 3.50m / 11′ 6″
- Standard Weight: 37,220 kg / 82,056 lbs
- Hybrid Weight: 38,267 kg / 84,364 lbs
