Overview

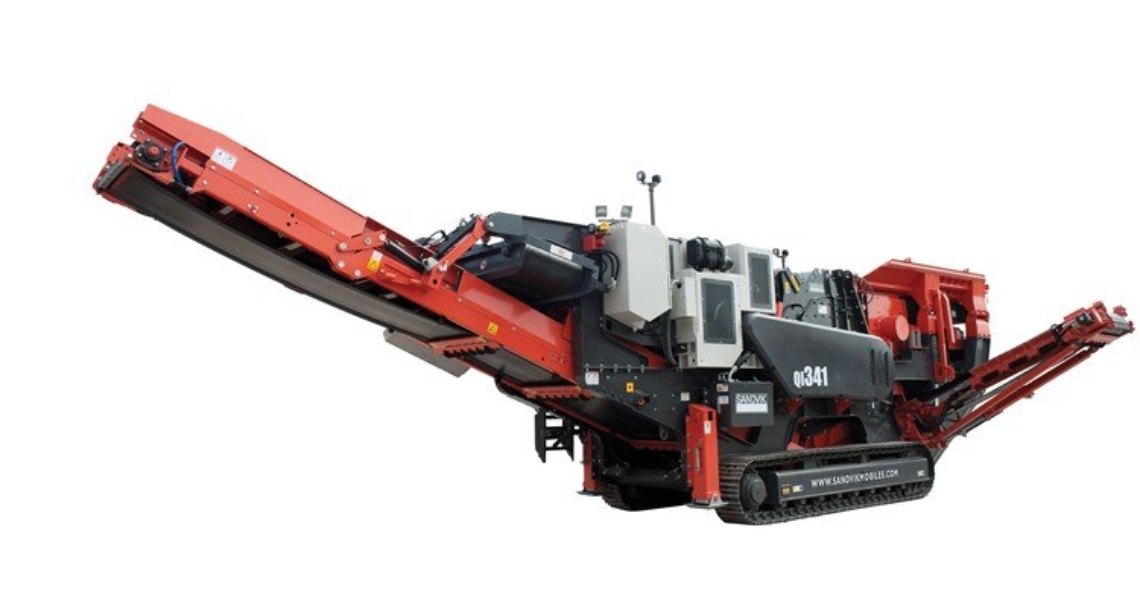

The Sandvik QI341 mobile impact crusher is the most versatile and cost effective mid-sized unit on the market. The QI341 has been built utilizing market leading Sandvik Impactor technology which has enabled the development of a fully mobile, compact impact crusher.

It features the unique Sandvik CI611 Prisec™ impactor, which has been designed to work either in a primary or secondary capacity. It can operate either independently or in conjunction with other members of the Sandvik product line in recycling or construction applications.

The compact dimensions of the QI341 make it perfect for sites where space is limited, but where superb product shape and high levels of production are required.

Features and Benefits

• User friendly PLC control system and color screen for ease of operation
• Raise / lower facility on the main conveyor, magnet and ceramic blow bars as standard
• Adjustable tip speed for precise end product refinement
• Reversible hydraulically driven cooling fan with automatic back flush feature
• Wear resistant feeder liner plates as standard for wear cost reduction

Key Specifications

• Equipment: Sandvik CI611 Prisec™ Impactor
• Feed Opening: 992 x 670 mm / 39″ x 26″
• Maximum Feed Size: 600 mm / 24″
• Engine: CAT C9.3B Stage 5 / T4F 280 kW / 375 hp; CAT C9 T3 261 kW / 350 hp
• Transport Length: 14.08 m / 46′ 2″
• Transport Width: 2.50 m / 8′ 2″
• Transport Height: 3.40 m / 11′ 2″
• Weight: 40,276 kg / 88,793 lbs
• Weight with Hanging Screen: 48,054 kg / 105,940 lbs
