Overview

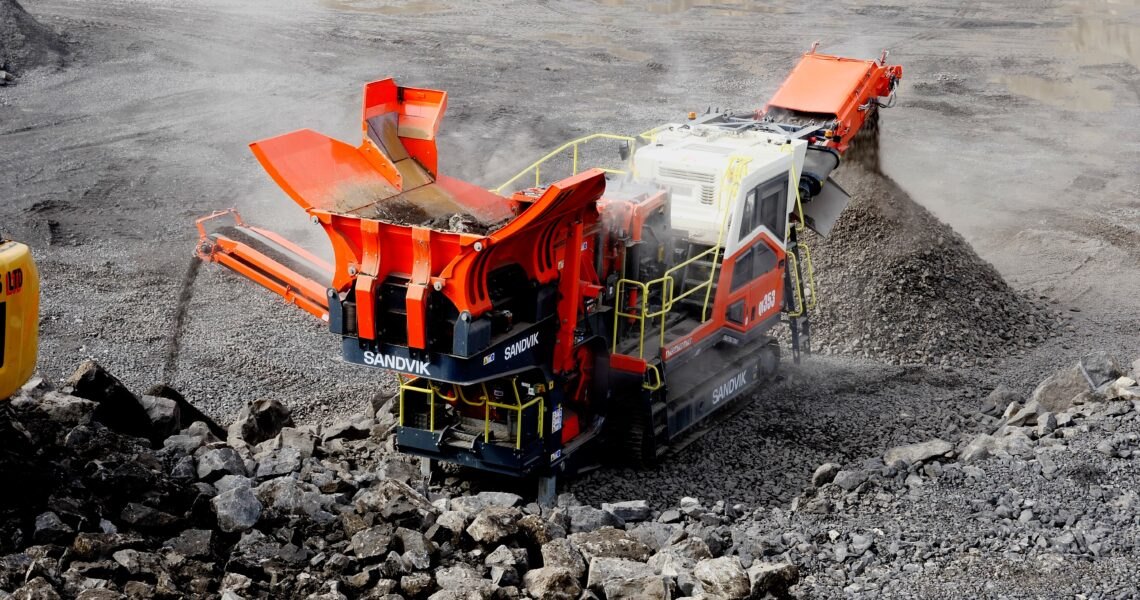

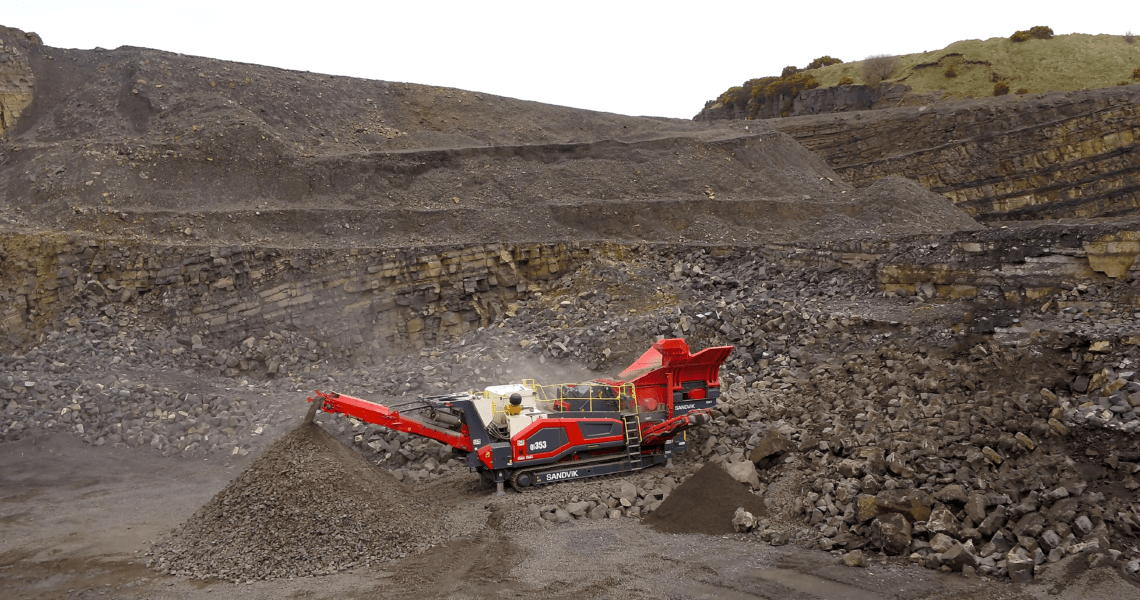

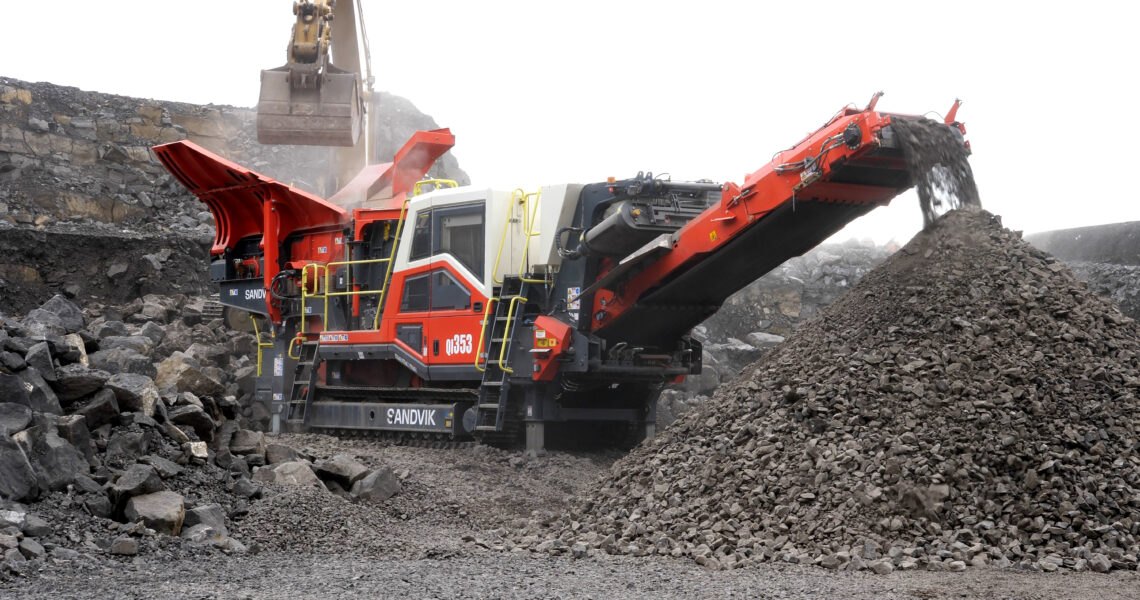

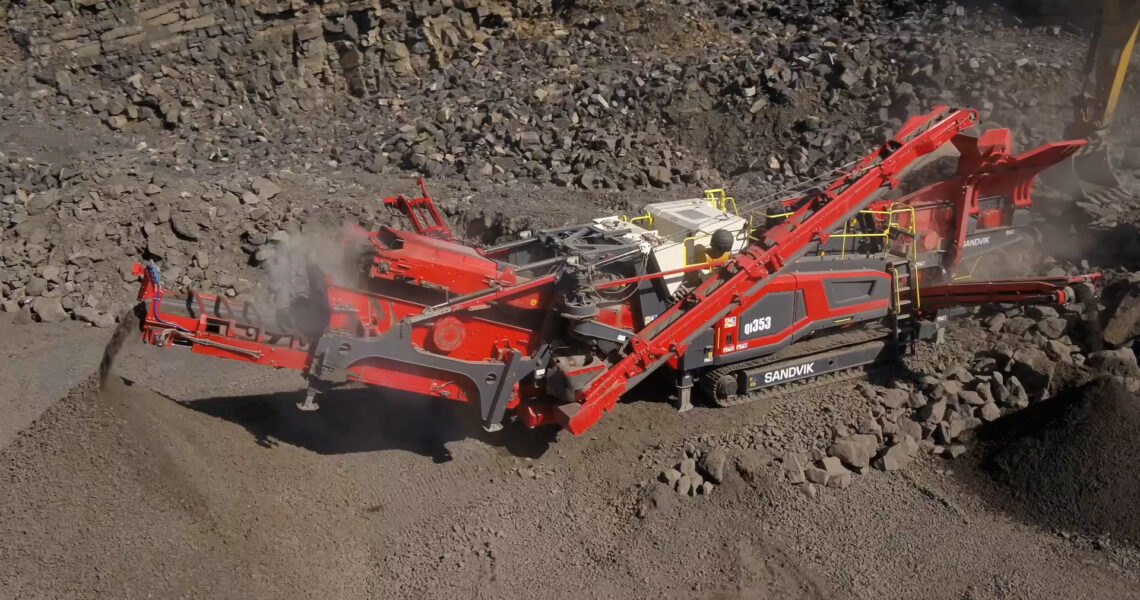

The QI353 is the most versatile, mid-sized mobile impactor available today.  The QI353 was developed to deliver more for customers. Based upon a new modular track platform, it features Sandvik market leading Prisec™ technology, capable of operating in primary and secondary applications. It can operate either independently or in conjunction with other members of the Sandvik product line in recycling or construction applications.

Features and Benefits

• Hydraulic raise / lower facility on main conveyor
• 1200 mm / 47″ belt width
• Improved stockpiling capacity (discharge height 4.02 m / 13′ 2″)
• Hydraulic raise and lower, safer for clearing blockages
• Hydraulic folding head section reduced transportation length and aids maintenance access
• Fully enclosed, dust suppression, side mounted spray nozzles
• Prepared for optional belt scales

Key Specifications

• Equipment: Sandvik Prisec™ HSI
• Feed Opening: 1170 x 730 mm / 46″ x 29″
• Production Capacity: 400 mtph / 441 stph
• Maximum Feed Size: 700 mm / 28″
• Engine: CAT C9.3B – Stage 5 or Stage 3A 310 kW / 415 hp
• Transport Length: 14.05 m / 46′ 1″
• Transport Width: 2.81 m / 9′ 3″
• Transport Height: 3.46 m / 11′ 4″
• Weight: 46,000 kg / 101,412 lbs
