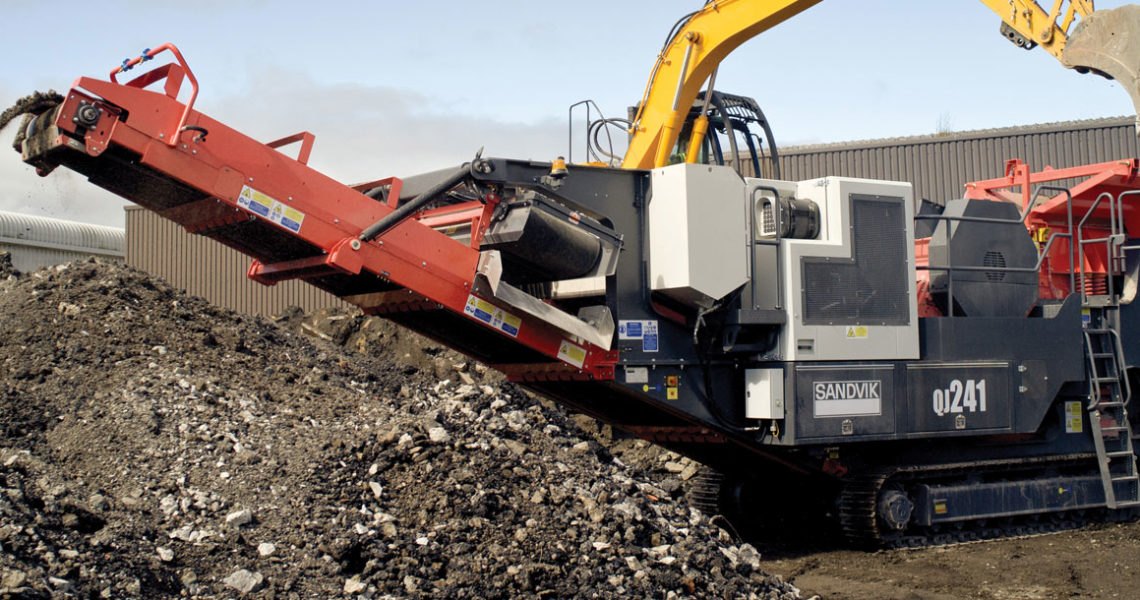

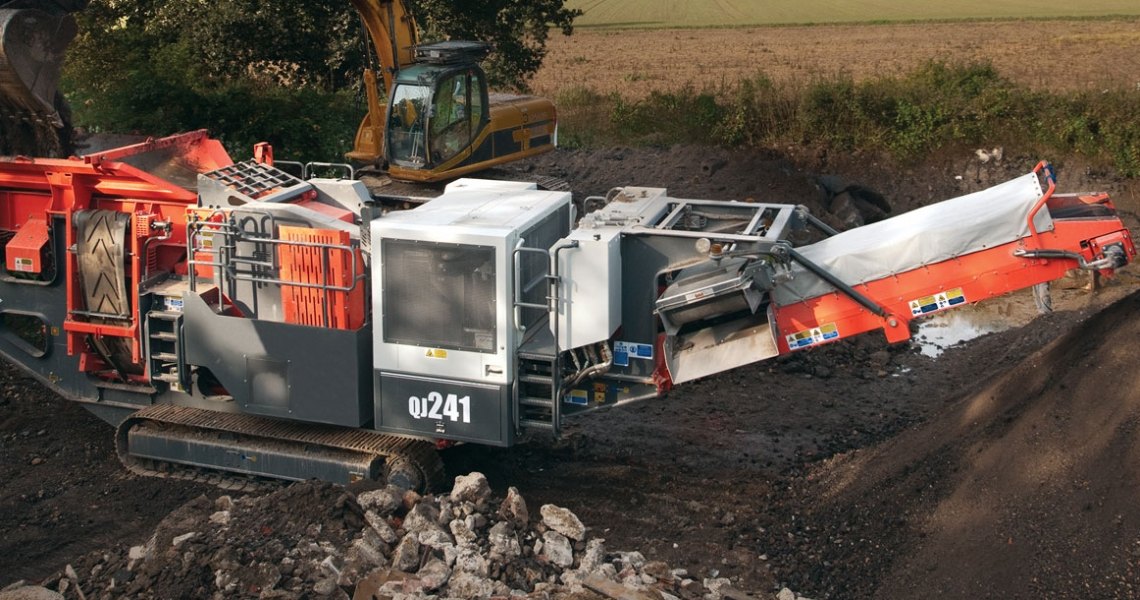

Sandvik QJ241 Tracked Jaw Crusher
Overview
The QJ241 utilizes a substantial 1000 x 650mm / 40 x 26″ jaw, powered by a highly economical 168kW / 225hp engine. Simply, the QJ241 brings you an ideal balance of size and performance. The QJ241 Jaw crusher is the ideal solution for recycling sites yet equally productive for your hard rock applications. Fitted with a raise and lower facility on the main conveyor, the QJ241 provides a greater discharge height and increased clearance for rebar discharge.
Features and Benefits
- Hydraulically adjustable jaw setting to maximise your output
- Reverse crushing action to crush sticky material or relieve blockages
- Hydraulic drive enabling the crusher to start under load, minimising downtime
- Jaw level sensor available to control feed rate with minimal intervention
- Raise/lower facility on the main conveyor, ideal for your recycling operations
Key Specifications
- Equipment: Single toggle C10 jaw crusher
- Feed Opening: 1000 x 650 mm / 40″ x 26″
- Max Feed Size: 520 mm / 21″
- Capacity: 225 mtph / 248 stph
- Engine: CAT C7.1 Stage 5 / T4F 168 kW / 225 hp; CAT C7.1 T3 168 kW / 225 hp
- Transport Length: 13.90 m / 45′ 7″
- Transport Width: 2.52 m / 8′ 3″
- Transport Height: 3.22 m / 10′ 6″
- Weight: 33,500 kg / 73,855 lbs
QJ241 Mobile jaw crusher offers ultimate flexibility
Although purpose developed for the contractor and recycling markets the crusher is equally productive for quarry operators seeking easy manoeuvrability and high quality. If operating space is limited, the QJ241 Mobile jaw crusher is ideal. With revolutionary features and a compact shape, it is designed to achieve impressive rates of production with excellent reduction ratios where space is at a premium.
The hydraulically adjustable jaw setting can be tailored to your application and the reversible crushing action can relieve blockages and deal with sticky problematic materials. And with hydraulically folding doors on the reinforced hopper for quick set up times the QJ241 is ready when you are.
The QJ241 is as versatile as it is easy to maintain, making it perfectly tailored to your needs. New and improved design features such as steel pipework enable a safe and maintenance-free sealing solution with the added benefit of better heat dissipation. And with easy access to the engine compartment and in-built automatic central lubrication system maintenance time is kept to an absolute minimum.
The QJ241 Mobile jaw crusher features enhanced fuel economy and low operating costs to give you the best cost per ton. For continuous, uninterrupted crushing in a variety of environments, the QJ241 is the ideal choice. In today’s competitive market you need a jaw crusher that you can rely on. The QJ241 Jaw crusher ensures the highest levels of production, while remaining easy to operate and maintain. With easy site to site transportation, and use in a small quarry or demolition site, the QJ241 Jaw crusher is the ultimate mobile solution.
