Overview

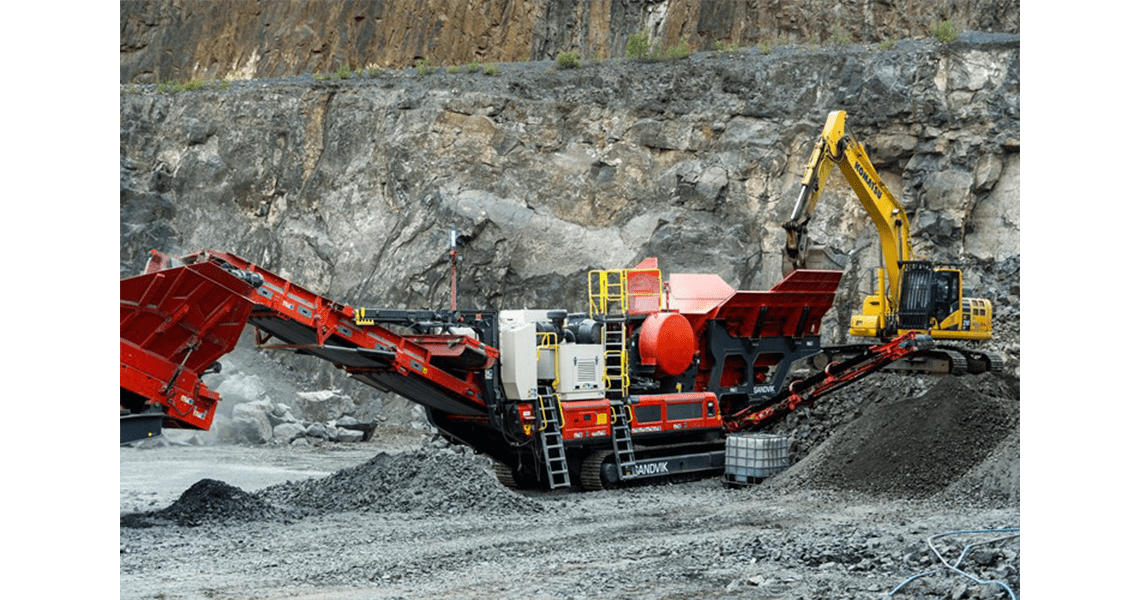

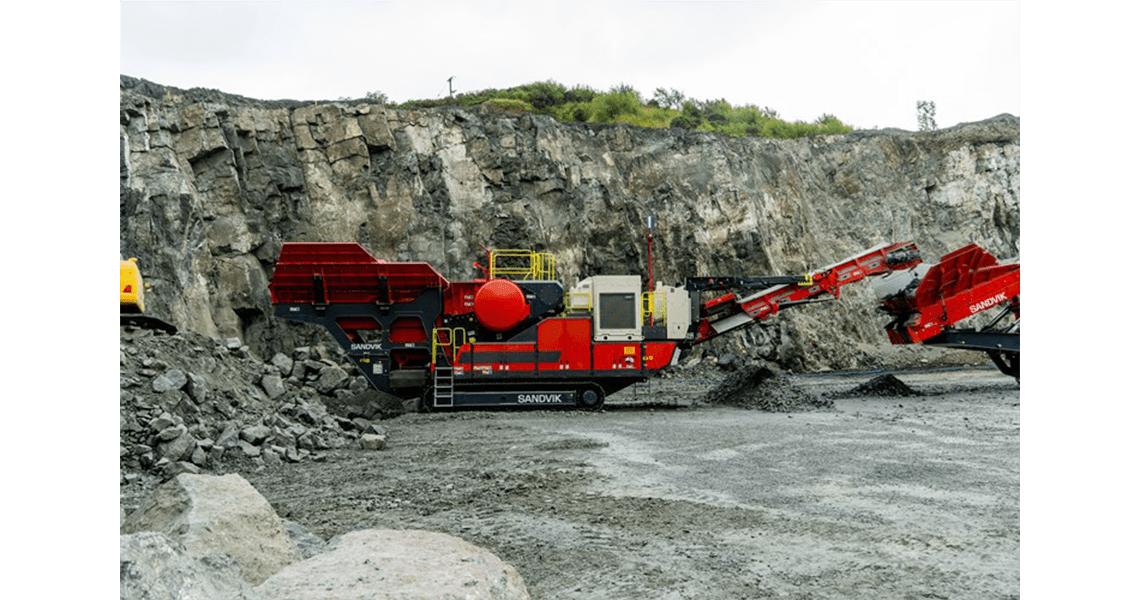

The UJ443E is a new generation heavy-duty tracked jaw crusher electrically powered for a more sustainable mobile solution. Built for the toughest of applications, it has been designed with improved connectivity, higher pre-separation and low energy consumption in mind. Featuring the CJ412 crusher and an automated process control system, it offers higher performance with minimal downtime compared to its predecessor.

Features and Benefits

• The fully electric track drives provide better control and agility when tracking and loading
• Redesigned feed station with patent pending hydraulic lift function for improved maintenance access and fixed jaw removal
• Standard hopper capacity of 8.3 m³ / 10.9 yrd³
• Class leading 1400 mm (55”) wide main conveyor is now angle adjustable and extended with remote hydraulic lock out and features a height adjustable overband magnet
• Has a larger bypass chute and optional natural fines conveyor, with 650 mm / 26” wide belt and a 3.5 m / 12 ft stockpile
• The jaw crusher assembly can be removed for transport, useful in regions with restrictive transport weight regulations

Key Specifications

• Equipment: Sandvik CJ412 jaw crusher
• Feed Opening: 1200 x 830 mm / 47″ x 33″
• Maximum Feed Size: 750 mm / 30″
• Main Conveyor Belt Width: 1400 mm / 55″
• Capacity (up to): 700 tph
• Engine: Volvo D13 (Stage 5 / T4F) 260 kW / 349 Hp

• Transport Length: 16.8 m / 55’1″
• Transport Width: 3.00 m / 9’10”

• Transport Height: 3.90 m / 12’10”
• Transport Weight: 69,500 kg / 153,221 lb
