Overview

MCR Technologies Group provides six standard models to choose from to best suit your requirements. The Weigh Shark scales are easy to install and to calibrate. Standard model scales are always in stock and can be shipped within 24 hours. There are many additional products available to help support your different applications.

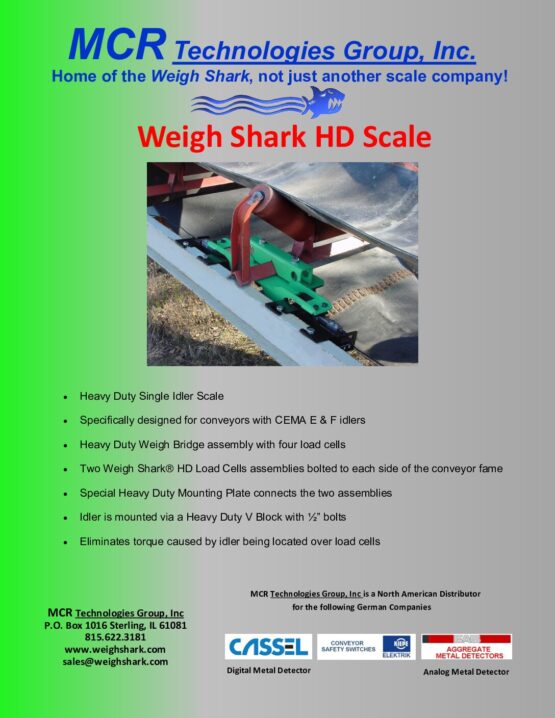

Weigh Shark Belt Scales BROCHURE

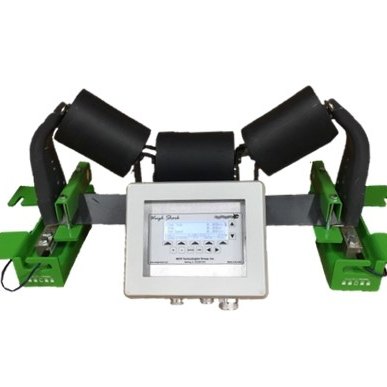

Include the following parts:

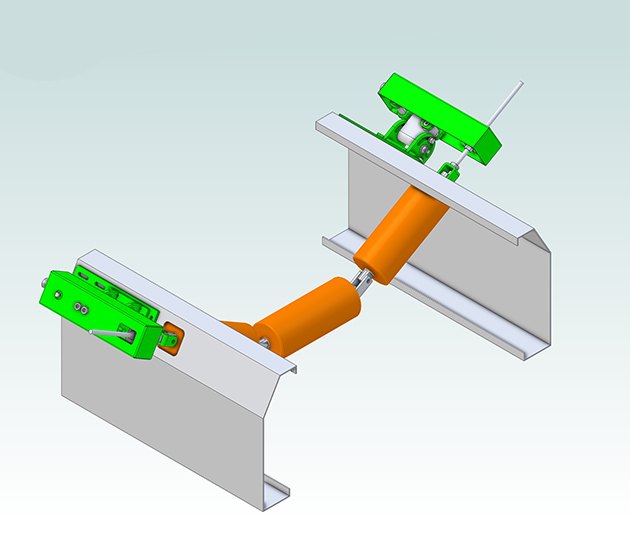

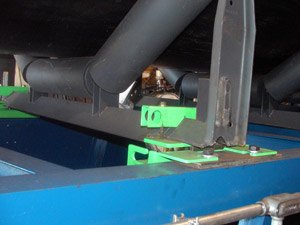

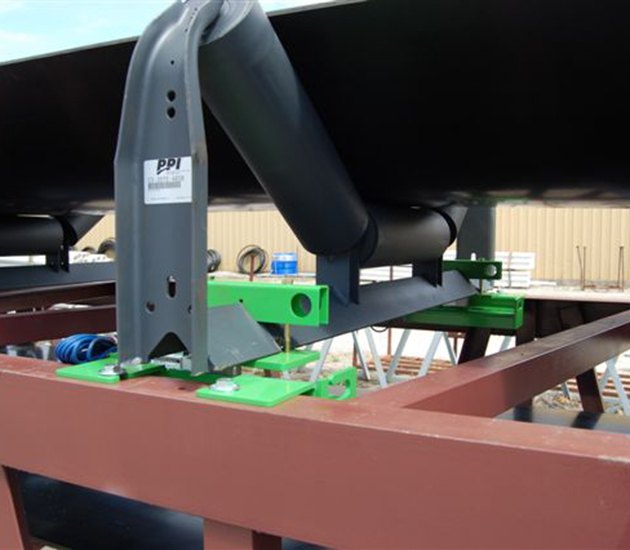

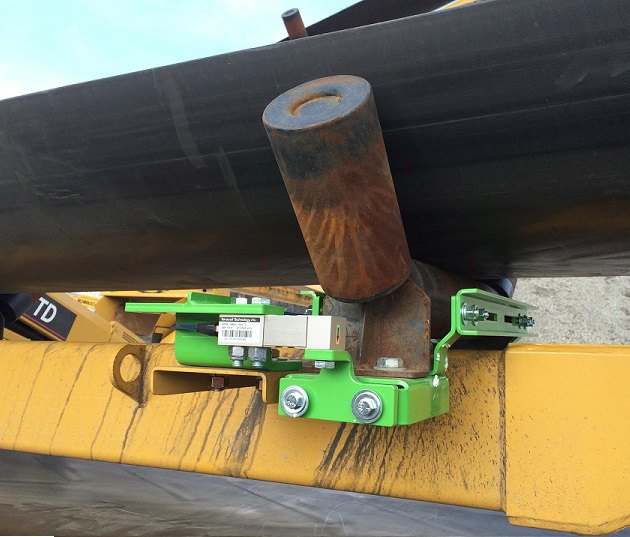

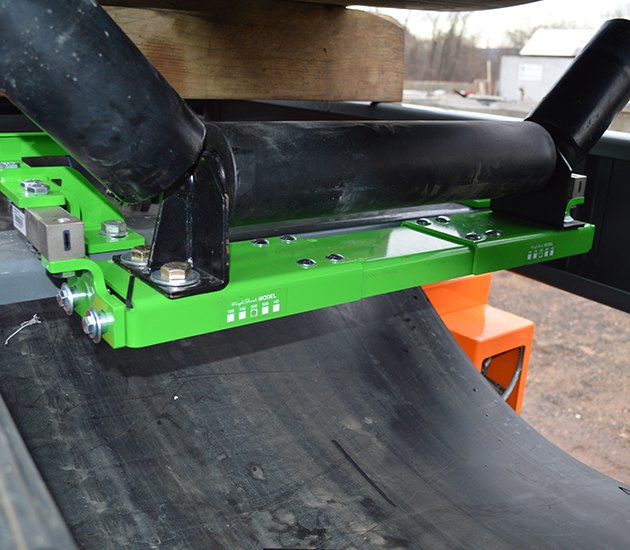

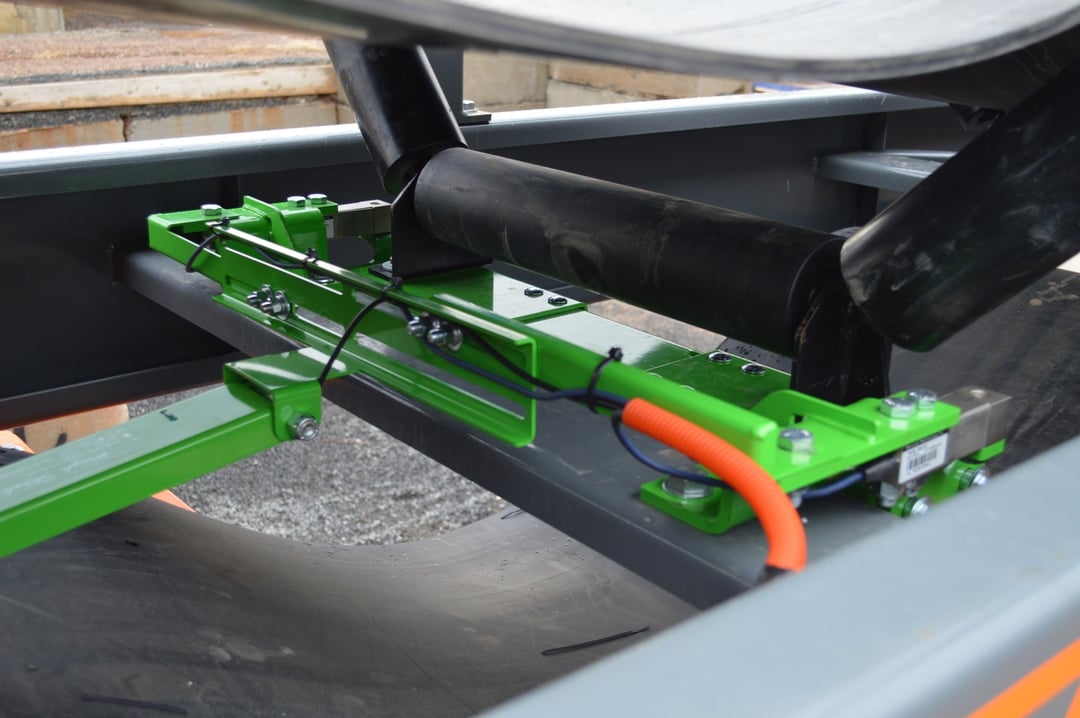

Load Cell Assemblies–- Built with solid steel construction with durable powder coating for protection, includes 32 Idler Shims.

Heavy Duty Speed Sensor- Built with solid steel construction with durable powder coating for protection, with solid stainless-steel wheel.

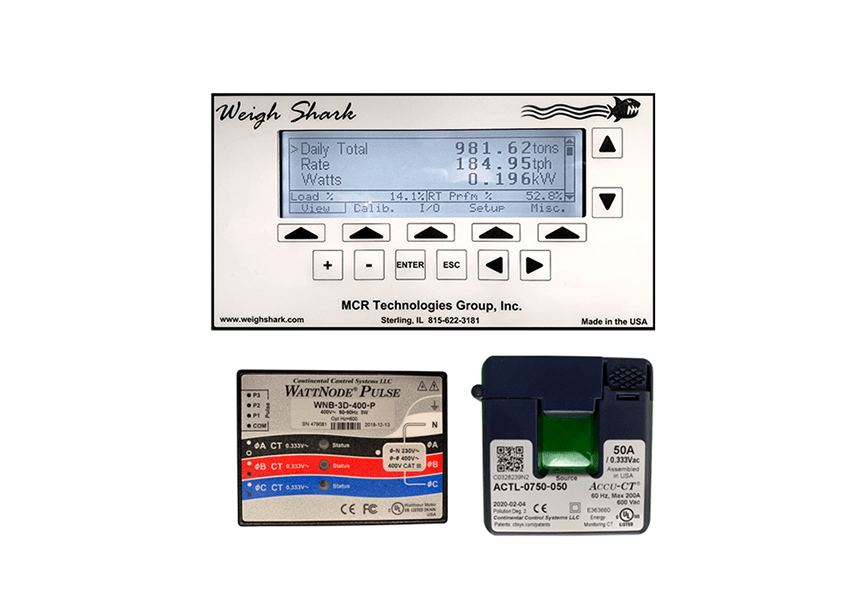

Weigh Shark Integrator – NEMA 4X Rated

Standard Features:

Large Graphical Display
4 Digital Inputs
4 Digital Outputs
0-20mA/4-20mA (16bit) Current Loop
Ethernet—HTTP Web Server ready
RS 232 and RS 485 Serial Ports
Modbus TCP via Ethernet
Modbus RTU via RS 485 Port
Accepts 110/220 Vac and12/24 Vdc.

Additional Information

Two Year Warranty on Parts – Refer to manual for complete warranty information.

Belt scales are available in stainless steel. Single Idler scale as standard, multi-idler scales available.

Standard Load Cells are Temperature Compensated 14 F to 122 F (-10 C to 50 C)

Optional Low Temp Stainless Load Cells are Temperature Compensated – 60 F to 125 F (-51 C to 51 C)

Weigh Shark – Suspended Magnets BROCHURE

The metal detector manufactured by EAB, QLCTA-M is especially developed for the aggregate and mining industries.

Electro magnets and Permanent magnets can be either manual clean or self-clean. They are versatile suspended magnets for the value-minded customer. These magnets can be confidently employed in a variety of applications such as: mining, aggregate, recycling, foundry, construction, demolition as well as wood processing. These magnets are good for all around magnetic protection against larger scrap material such as bucket teeth and drill bits from aggregate and coal, as well as separation of small ferrous objects such as nails and staples from construction debris.

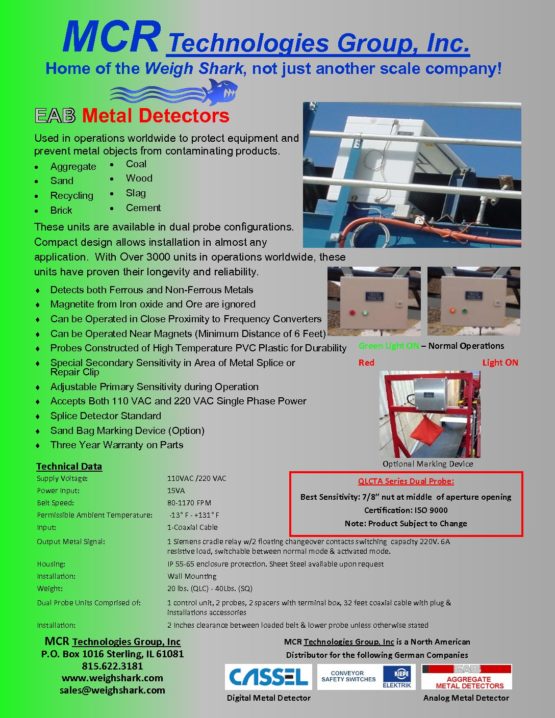

Weigh Shark Metal Detectors BROCHURE

EAB Metal Detectors are designed to be reliable, resistant to vibration and maintenance free under proper operational conditions. With the metal detector, it is possible to monitor material with a high percentage of metal oxide IE: Basalt, Slag, Magnetite, Magnesium Oxide, etc. The metal detector protects crushers, mills, mixers, and extruder machines. The metal detector will detect all kinds of metals including: Steel, Iron, Copper, Aluminum, Brass and Stainless Steel. These quality metal detectors from EAB come with an upper & lower probe, two side spacers, control box and a splice detector.

Used in operations worldwide to protect equipment and prevent metal objects from contaminating products.
